In the realm of portable and embedded projects, display technology plays a crucial role in enhancing usability, interactivity, and overall user experience. Among the many options available, a 5 inch HDMI touchscreen backpack stands out as a compact, versatile, and efficient solution. This article explores how integrating a 5 inch HDMI touchscreen backpack, particularly one featuring an HD IPS touchscreen display, can significantly improve your portable projects. We will delve into its features, benefits, applications, and practical considerations, providing a comprehensive understanding for makers, developers, and tech enthusiasts.
A 5 inch HDMI touchscreen backpack is essentially a small, panel-mountable monitor equipped with a built-in touchscreen interface and an HDMI input for video signals. It typically includes a display controller board (the "backpack") that decodes HDMI video and manages touchscreen input, making it plug-and-play with most computers and embedded systems.
- Display Size and Resolution: The screen size is 5 inches diagonally, with a native resolution of 800x480 pixels. This resolution is sufficient for running most software interfaces and multimedia applications without the bulk of larger monitors.
- Touchscreen Technology: These backpacks often use resistive or capacitive touchscreens. Capacitive touchscreens, especially those with HD IPS touchscreen display technology, offer better sensitivity, multi-touch support, and durability.
- Power and Connectivity: The display and touchscreen are powered via USB, while video input is through an HDMI port. This setup allows easy connection to a wide range of devices, including Raspberry Pi, PCs, and other HDMI-enabled systems.
- Compact and Mountable: The backpack design allows easy attachment to cases, rails, or portable enclosures, making it ideal for embedded and mobile projects.
The integration of an HD IPS touchscreen display in a 5 inch HDMI touchscreen backpack brings several significant advantages that elevate the quality and functionality of portable projects.
IPS (In-Plane Switching) technology enhances color accuracy and consistency across wide viewing angles, typically up to 178 degrees horizontally and vertically. This means the display maintains vivid colors and sharp images even when viewed from the side, which is crucial for portable devices that may be used in various orientations and lighting conditions.

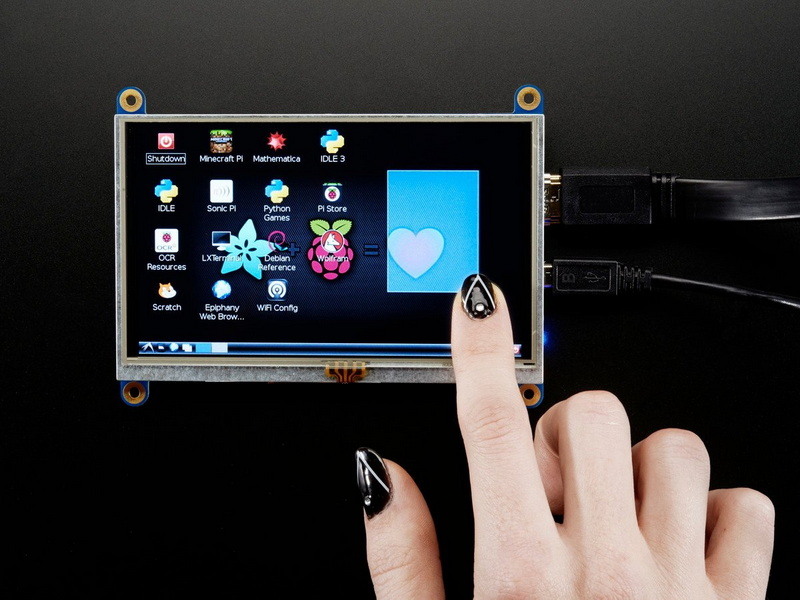

Capacitive touchscreens paired with IPS displays provide smooth, accurate touch responses and support multi-touch gestures like pinch-to-zoom and swiping. This improves user interaction, making interfaces more intuitive and responsive compared to resistive touchscreens.
A 5 inch display is small enough to keep the overall device lightweight and portable, yet large enough to provide clear visual feedback and comfortable touch interaction. This balance is ideal for handheld devices, portable gaming consoles, field diagnostic tools, and other mobile applications.
Many HDMI touchscreen backpacks are designed to operate efficiently, with power drawn solely from a USB port. The backlight brightness can often be controlled via PWM signals, allowing further power savings when full brightness is unnecessary.
The versatility of a 5 inch HDMI touchscreen backpack with an HD IPS touchscreen display makes it suitable for a wide range of portable projects:
The compact size and responsive touchscreen allow developers to build handheld gaming devices that deliver immersive gameplay with crisp visuals and intuitive controls.
Engineers can integrate these displays into embedded systems for real-time monitoring, control panels, or user interfaces in IoT devices, benefiting from the plug-and-play HDMI connectivity and USB-powered touchscreen.
The high-definition display and touchscreen make it ideal for portable media players, enabling users to watch videos, browse photos, or navigate menus easily on the go.
Technicians and engineers working in the field can use these displays for portable diagnostic devices, offering clear data visualization and touch-based controls in a compact form factor.
Hobbyists and educators can leverage the ease of integration and interactive features to create engaging learning tools, prototypes, and experimental setups.

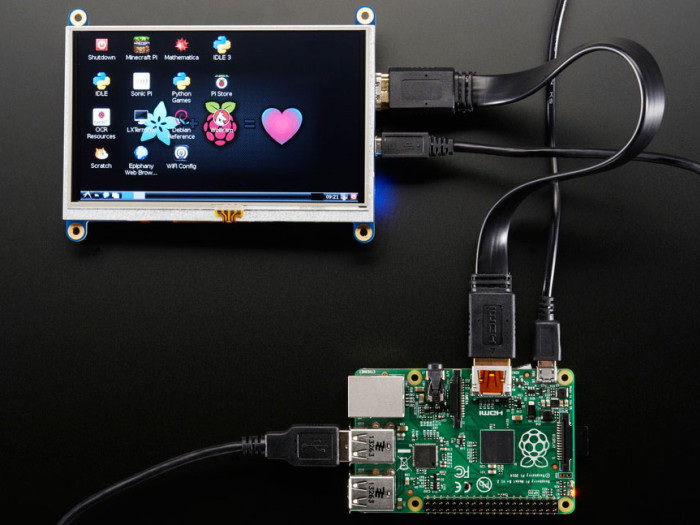

- Connect the HDMI output of your device (e.g., Raspberry Pi, mini PC) to the HDMI input on the backpack.
- Connect the USB cable from the touchscreen controller to the device's USB port to enable touch functionality.
- Power the display via USB, ensuring the port can supply sufficient current (typically around 500-600mA).
- Most operating systems (Windows, macOS, Linux) recognize the touchscreen as a USB mouse device, requiring no special drivers.
- For Raspberry Pi and similar platforms, touchscreen calibration and driver installation may be necessary but are generally straightforward.
- Adjust backlight brightness via software or hardware PWM input if supported.
- Use the backpack's panel-mountable design to securely attach the display to your project enclosure.
- Ensure proper ventilation and protection to maintain display longevity.
| Feature | HD IPS Touchscreen Display | TN Display | AMOLED Display |
|---|---|---|---|
| Color Accuracy | High, true-to-life colors | Moderate | Very High |
| Viewing Angles | Wide (up to 178 degrees) | Narrow | Wide (varies by brand) |
| Touch Responsiveness | Smooth, supports multi-touch | Rarely supports touch | Smooth, supports multi-touch |
| Durability | Resistant to pressure marks | Less durable | Varies |
| Power Consumption | Moderate | Low | Higher |
| Price | Moderate to High | Low | High |
The HD IPS touchscreen display strikes a balance between visual quality, touch performance, and power efficiency, making it ideal for portable projects where these factors are critical.
A 5 inch HDMI touchscreen backpack equipped with an HD IPS touchscreen display offers a powerful combination of compactness, high visual fidelity, and responsive touch interaction, making it an excellent choice for portable and embedded projects. Whether you are developing a handheld gaming device, an IoT control panel, or a portable media player, this technology enhances usability and user experience while maintaining portability and ease of integration. Its plug-and-play nature, wide compatibility, and efficient power consumption further simplify project development and deployment. Embracing this technology can significantly improve the functionality and appeal of your portable projects.
A typical 5 inch HDMI touchscreen backpack has a resolution of 800 x 480 pixels, which is sufficient for most portable applications without adding bulk.
Yes, the display and touchscreen controller can be powered entirely from a USB port, usually requiring around 500-600mA depending on backlight brightness settings.
Many 5 inch HDMI touchscreen backpacks with capacitive HD IPS touchscreen displays support multi-touch gestures, providing a more interactive and intuitive user experience.
Yes, it is compatible with various Raspberry Pi models, including Pi Zero (with adapter), Pi 2, Pi 3, and Pi 4. Touchscreen features generally work out of the box or with minimal driver installation.
HD IPS touchscreen displays offer superior color accuracy, wide viewing angles, and durable touch surfaces, making them ideal for portable projects requiring high-quality visuals and responsive touch input.
