Laptop LCD screens are an essential component of modern computing, serving as the primary interface between users and their devices. Understanding how does a laptop LCD screen work involves exploring the intricate layers and technologies that combine to produce the vibrant images and text we see every day. This article delves deeply into the working principles, components, and technologies behind laptop LCD screens, providing a comprehensive overview for tech enthusiasts and everyday users alike.
LCD stands for Liquid Crystal Display. Unlike other display technologies that emit their own light, LCD screens rely on manipulating light passing through liquid crystals to create images. This fundamental difference means that LCDs require an external light source, known as a backlight, to illuminate the screen.

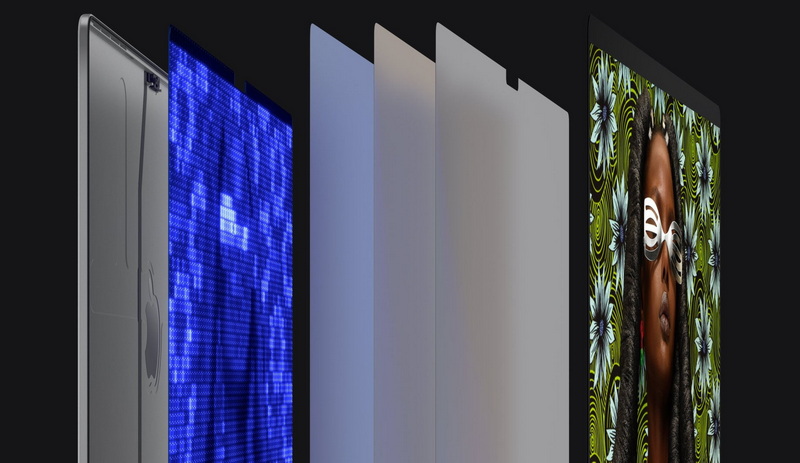

To understand how does a laptop LCD screen work, it is crucial to know its layered construction. A typical laptop LCD screen consists of several key layers:
At the heart of the LCD screen is the liquid crystal panel. This panel contains millions of tiny liquid crystal cells sandwiched between two glass sheets. These liquid crystals have the unique ability to twist and align in response to electrical currents, controlling the passage of light through them.
There are two polarized sheets placed on either side of the liquid crystal layer. These filters control the orientation of light waves passing through the screen. The first polarizer filters the backlight, allowing only light waves aligned in a specific direction to pass. The liquid crystals then twist this polarized light to varying degrees, depending on the electrical signal applied.
Each pixel on the screen is divided into three subpixels, corresponding to red, green, and blue colors. These subpixels have color filters that allow only their respective colors to pass through. By varying the intensity of light passing through each subpixel, the screen can produce a wide spectrum of colors.
Since liquid crystals do not emit light themselves, a backlight is necessary. Modern laptop LCDs mostly use LED backlights, which are energy-efficient and provide bright, even illumination. The backlight shines white light through the layers, which the liquid crystals modulate to form the images we see.
Between the backlight and the liquid crystal panel are diffuser films and a light guide plate. These components help distribute the backlight evenly across the entire screen, preventing hotspots and ensuring consistent brightness.
The working process of a laptop LCD screen can be broken down into several steps:
The LED backlight emits white light that travels through the diffuser and light guide films to ensure uniform brightness across the screen.
This white light then passes through the first polarizing filter, which aligns the light waves in a single plane.
The liquid crystals receive electrical signals from the laptop's graphics controller. Depending on the voltage applied, the crystals twist to different angles, controlling how much light can pass through.
After passing through the liquid crystals, the light encounters the second polarizing filter. The amount of light allowed through depends on the crystals' orientation. The light then passes through the RGB color filters of each subpixel, producing the desired color.
By controlling the light intensity and color of millions of pixels, the screen displays images, videos, and text with high precision.
Understanding how does a laptop LCD screen work also means recognizing the different panel technologies used:
TN panels are the most common and affordable LCD type. They use liquid crystals twisted at a 90-degree angle to control light. TN panels offer fast response times but have limited viewing angles and color accuracy.
IPS panels align liquid crystals parallel to the screen, providing better color reproduction and wider viewing angles. They are preferred for professional work requiring color accuracy.
VA panels offer better contrast ratios than TN and IPS but can have slower response times. They are a middle ground between TN and IPS in terms of performance.
- Affordability: LCD technology is less expensive to produce compared to newer display types like OLED, making it common in laptops.
- Long Lifespan: LCDs are less prone to issues like burn-in, which can affect other screen types.
- Energy Efficiency: Especially with LED backlights, LCDs consume relatively low power.
- Good Brightness and Color: Modern LCDs with IPS panels offer excellent color accuracy and brightness suitable for most users.
Understanding how does a laptop LCD screen work reveals the sophisticated technology behind everyday devices. The interplay of liquid crystals, polarizing filters, RGB color filters, and LED backlights creates the vibrant, sharp images we rely on. While newer technologies like OLED are emerging, LCD screens remain the backbone of laptop displays due to their affordability, longevity, and solid performance. Whether for gaming, professional work, or casual use, knowing how your laptop's screen functions can help you make better choices when purchasing or troubleshooting your device.
A laptop LCD screen uses red, green, and blue subpixels within each pixel. By controlling the light passing through these subpixels, it mixes colors to create the full color spectrum.
Viewing angles depend on the type of LCD panel. TN panels have limited viewing angles because of the way liquid crystals twist light, whereas IPS panels offer much wider angles.
LCD screens rely on backlighting, so they cannot display true black as OLED screens do. The backlight always emits some light, which can cause blacks to appear dark gray.
Dead pixels occur when individual liquid crystal cells or subpixels fail to respond to electrical signals, resulting in permanently lit or unlit spots on the screen.
Laptop LCD screens generally have a long lifespan, often lasting several years without significant degradation, especially with LED backlighting.
