Liquid Crystal Display (LCD) technology has revolutionized the way we view images on computer screens, televisions, and countless other devices. Understanding how does an LCD computer screen work involves exploring the intricate interplay of light, liquid crystals, electrical signals, and color filters. This article delves deeply into the science and engineering behind LCD screens, explaining their components, working principles, and the technology that makes them so efficient and popular.
An LCD is a flat-panel display technology that uses liquid crystals combined with polarizing filters to modulate light and produce images. Unlike older display technologies such as cathode-ray tubes (CRT), LCDs do not emit light directly; instead, they manipulate light from a backlight to display images in color or monochrome.

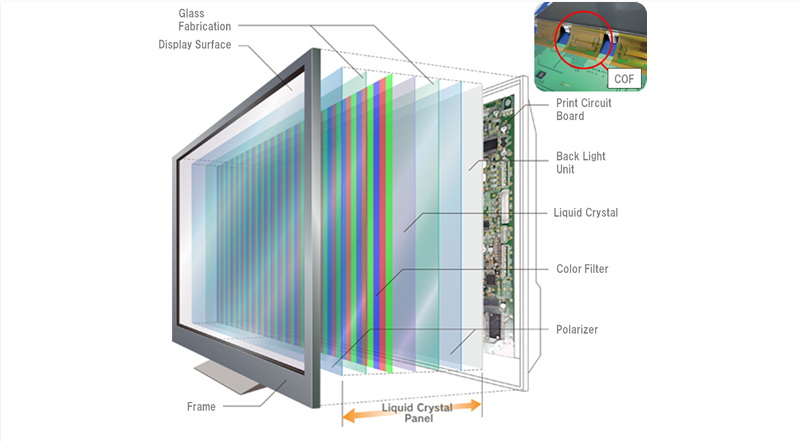

To understand how does an LCD computer screen work, it is essential to know its main components:
- Backlight: The source of light behind the screen, typically composed of LED or fluorescent lamps, which emits white light.
- Polarizing Filters: Two layers of polarizing glass placed at right angles to each other, which control the orientation of light waves passing through.
- Liquid Crystal Layer: A thin layer of liquid crystal molecules sandwiched between the polarizers. These crystals can twist and untwist when an electric current is applied.
- Color Filters: Each pixel contains three sub-pixels with red, green, and blue filters that combine to produce the full spectrum of colors.
- Thin-Film Transistors (TFT): These control the electrical current to each pixel, allowing precise manipulation of the liquid crystals.

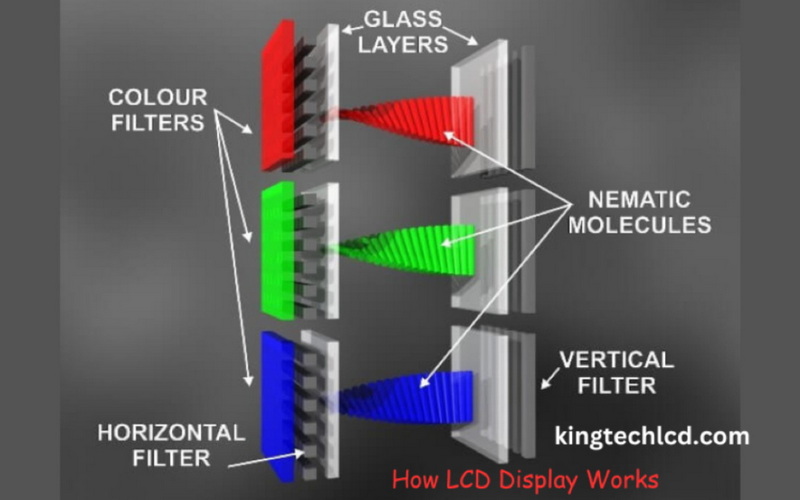

Liquid crystals are unique substances that exhibit properties of both liquids and solids. Their molecules can be aligned in specific ways when subjected to an electric field. In an LCD, these crystals are arranged so that in their natural state (without voltage), they twist light by 90 degrees, allowing it to pass through the second polarizer.
When voltage is applied, the liquid crystals untwist, changing the angle of the polarized light passing through them. This alteration controls how much light can pass through the second polarizing filter, effectively controlling the brightness and color of each pixel.
The operation of an LCD screen hinges on the concept of polarized light. Light waves vibrate in many directions, but a polarizing filter only allows light vibrating in one direction to pass through. The first polarizer polarizes the backlight. The liquid crystal layer then twists the polarized light depending on the applied voltage. Finally, the second polarizer either blocks or allows the light to pass based on its orientation relative to the twisted light.
This precise control over light transmission at each pixel creates the images we see on the screen.
Each pixel on an LCD screen consists of three sub-pixels with red, green, and blue filters. By varying the voltage applied to each sub-pixel, the liquid crystals adjust the light intensity passing through, mixing these primary colors to generate millions of possible colors.
The thin-film transistors (TFTs) act as tiny switches for each sub-pixel, rapidly turning the current on and off to control the image refresh rate and color accuracy.
Since liquid crystals do not emit light, an external light source is necessary. The backlight emits white light that passes through the layers of the LCD panel. This backlight is usually made of LEDs arranged behind or along the edges of the screen.
To ensure the light is evenly distributed across the screen, a diffuser panel scatters the light uniformly. Without this, some areas would appear brighter than others, leading to poor image quality.
The polarized filters and liquid crystals then modulate this diffused light to create the desired image on the screen.
Early LCDs used passive matrix technology, where pixels were controlled by intersecting conductive grids. This method was simpler but slower, resulting in ghosting effects and lower image quality, especially for fast-moving images.
Modern LCD computer screens use active matrix technology, also known as Thin-Film Transistor (TFT) LCDs. Here, each pixel is controlled by a transistor that allows for faster switching, better color control, and higher resolution. This technology greatly improves refresh rates and image clarity, making it the standard for computer monitors.
- Energy Efficiency: LCDs consume less power compared to CRTs and some LED displays.
- Thin and Lightweight: Their flat-panel design makes them compact and portable.
- Sharp Image Quality: High resolution and color accuracy are achievable.
- No Screen Burn-In: Unlike CRTs, LCDs do not suffer from permanent image retention.
- Viewing Angles: Image quality can degrade when viewed from extreme angles.
- Response Time: Some LCDs may exhibit motion blur in fast-moving images.
- Backlight Bleed: Uneven backlighting can cause light leakage around the screen edges.
Understanding how does an LCD computer screen work reveals a sophisticated technology that combines physics, chemistry, and electronics to produce vibrant, energy-efficient displays. The interplay of liquid crystals, polarized light, and precise electrical control enables millions of colors and sharp images to appear on a thin, lightweight screen. As LCD technology continues to evolve, it remains a cornerstone of modern display devices, balancing performance and efficiency for everyday use.
Liquid crystals are substances that flow like liquids but have molecules arranged in an ordered, crystal-like structure. Their orientation changes when an electric current is applied, which controls the passage of light through the screen.
The backlight provides the essential light source for the LCD. Its brightness and uniformity directly impact the display's clarity, contrast, and color vibrancy.
Polarizing filters control the direction of light waves. By placing two filters at right angles, the LCD can manipulate light transmission through the liquid crystal layer, creating visible images.
Passive matrix LCDs control pixels via intersecting grids, leading to slower response times and lower image quality. Active matrix LCDs use thin-film transistors at each pixel for faster, more precise control, resulting in better performance.
LCDs rely on backlighting, so they cannot produce true black like OLED screens. Instead, they block light to create dark areas, but some light leakage may cause blacks to appear grayish.
