Liquid Crystal Display (LCD) technology has revolutionized the way we view images on televisions, computer monitors, and many other devices. The process of manufacturing an LCD TV screen is intricate, involving multiple precise steps that combine advanced materials science, semiconductor fabrication, and mechanical assembly. This article explores in detail how is a LCD TV screen made, from the raw materials to the final product, and explains the key components and technologies involved.
Before diving into the manufacturing process, it is essential to understand what an LCD screen is and how it works. An LCD screen consists of layers that manipulate light to produce images. Unlike OLED screens that emit light themselves, LCDs rely on a backlight to illuminate the pixels. The core of the display is a layer of liquid crystals sandwiched between two glass substrates. These liquid crystals can change orientation when an electric field is applied, controlling the passage of light through the screen to create images.
The liquid crystals themselves do not emit light; instead, they act as light modulators. By twisting and untwisting in response to electrical signals, they control how much light passes through each pixel. This modulation, combined with color filters and polarizers, creates the vivid and sharp images we see on LCD TVs.

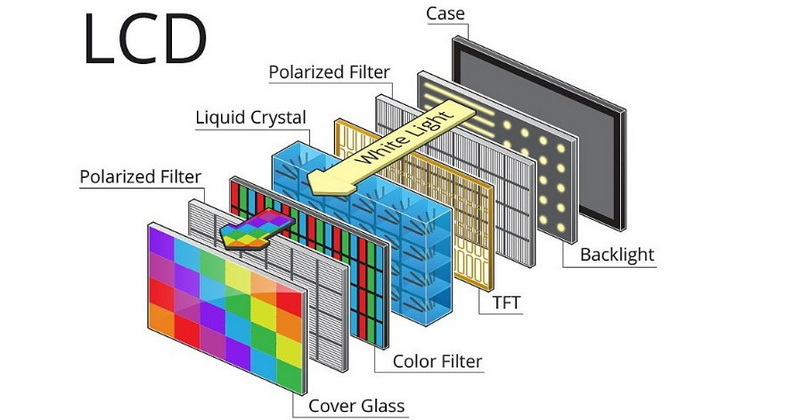

- Glass Substrates: Two thin sheets of glass form the structural base of the screen. These substrates must be extremely flat and free from defects to maintain image clarity.
- Thin Film Transistors (TFTs): Tiny electronic switches that control individual pixels. Each pixel has its own transistor, allowing precise control of the liquid crystal orientation.
- Color Filters: Red, green, and blue filters that enable color display. By combining these three primary colors at varying intensities, the screen can produce millions of colors.
- Liquid Crystals: The material that modulates light passage. These organic compounds respond to electric fields by changing their orientation.
- Polarizers: Films that control light polarization, enhancing contrast and reducing glare.
- Backlight Unit: Usually an array of LEDs that illuminate the screen from behind, providing the necessary light for the liquid crystals to modulate.
The process begins with preparing two glass substrates: the array substrate and the color filter substrate. These glass plates undergo rigorous cleaning to remove any dust or impurities that could affect image quality. The cleaning process involves ultrasonic baths and chemical treatments to ensure absolute cleanliness. Even microscopic particles can cause dead pixels or distortions, so this step is critical.
On the array substrate, a transparent conductive layer, typically made of indium tin oxide (ITO), is deposited. Over this, a layer of amorphous silicon is added using chemical vapor deposition (CVD). This silicon layer is then patterned through photolithography and etching to create millions of tiny transistors and capacitors that form the TFT array. Each transistor acts as a switch controlling the voltage applied to an individual pixel, enabling precise control of the display.
The TFT fabrication is a highly delicate process requiring cleanroom environments to prevent contamination. The transistors must be uniform and defect-free to ensure consistent image quality across the entire screen.
The color filter substrate is coated with a black matrix to define pixel boundaries and prevent color mixing. Then, red, green, and blue filters are applied in a precise pattern using photolithography. This patterning ensures that each pixel can produce the full spectrum of colors by combining the subpixels.
The color filters are typically made from organic dyes or pigments that are stable and vibrant. The accuracy of this patterning directly affects the color fidelity of the final display.
Both glass substrates receive a layer of polyimide, which is then rubbed in a specific direction to align the liquid crystal molecules uniformly. This rubbing process creates microscopic grooves that guide the orientation of the liquid crystals. Proper alignment is crucial for the liquid crystals to respond correctly to electrical signals and modulate light effectively.
Without this alignment, the liquid crystals would orient randomly, resulting in poor image quality and contrast.
The two substrates are aligned facing each other with a narrow gap between them, maintained by tiny spacer beads. This gap is filled with liquid crystal material through a vacuum injection process to avoid air bubbles that could distort the image. The substrates are then sealed to contain the liquid crystals securely.
The vacuum injection ensures the liquid crystals fill the entire space evenly, which is vital for uniform image display. After sealing, the cell undergoes curing to stabilize the liquid crystal layer.
Polarizing films are attached to the outer surfaces of the glass substrates. These polarizers control the orientation of light waves passing through the liquid crystal layer, enhancing contrast and color accuracy in the final display. One polarizer is aligned vertically, and the other horizontally, so light passing through the first is modulated by the liquid crystals before passing through the second.
This arrangement allows the screen to control light intensity precisely, creating the images we see.

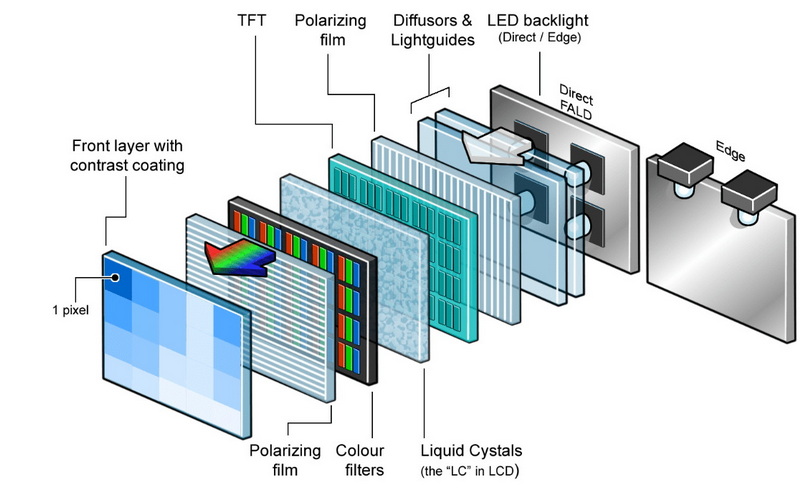

Since liquid crystals do not emit light, a backlight is essential. Modern LCD TVs use LED backlights arranged in strips or arrays behind the LCD panel. The LEDs are mounted on a circuit board, and their light is diffused evenly across the screen using a light guide plate made of transparent plastic. Optical films such as diffusers and prism sheets are added to improve brightness, uniformity, and color saturation.
The backlight design significantly impacts the TV's brightness, energy consumption, and color performance. Advances like local dimming enable parts of the backlight to dim independently, enhancing contrast ratios.
The LCD panel is combined with other components such as the main circuit board, power supply, speakers, and casing. The entire TV undergoes rigorous testing for image quality, color accuracy, brightness, and functionality. Automated optical inspection systems detect dead pixels, color inconsistencies, and other defects. Any flaws found are corrected or the unit is rejected.
This quality control ensures that only displays meeting strict standards reach consumers, maintaining brand reputation and customer satisfaction.
Manufacturers continually improve LCD technology with innovations such as:
- Quantum Dot Enhancement: Incorporating quantum dots into the LCD structure improves color accuracy and brightness by emitting pure, saturated colors when illuminated by the backlight.
- Local Dimming: Allows parts of the backlight to dim independently, enhancing contrast by deepening blacks without sacrificing brightness in other areas.
- High Dynamic Range (HDR): Provides better contrast and color depth for a more lifelike image by expanding the range between the darkest and brightest parts of the screen.
- In-Plane Switching (IPS) Panels: A technology that improves viewing angles and color reproduction by changing the orientation of liquid crystals.
These advancements contribute to richer, more immersive viewing experiences.
The production of LCD screens involves the use of various chemicals and materials that require careful handling to minimize environmental impact. Manufacturers are increasingly adopting eco-friendly practices such as recycling glass substrates, reducing hazardous waste, and improving energy efficiency in production lines. For instance, water-based cleaning processes replace harsh solvents, and waste materials are treated to prevent contamination.
Additionally, efforts to reduce power consumption in LCD TVs through more efficient backlighting and circuitry contribute to environmental sustainability. These initiatives help reduce the carbon footprint associated with LCD TV production and usage.
As display technology evolves, LCD screens continue to improve in resolution, color accuracy, and energy consumption. Emerging trends include:
- Flexible LCD Panels: Development of bendable and foldable LCD screens for new form factors in TVs and mobile devices.
- Enhanced Touch Capabilities: Integration of touch sensors directly into LCD panels for interactive displays.
- Miniaturization of Components: Smaller transistors and improved materials allow higher pixel densities and thinner screens.
- Integration with Smart Technologies: Embedding AI and advanced processing to optimize picture quality dynamically.
These advancements promise to keep LCD technology relevant and competitive in the rapidly changing display market.
The question of how is a LCD TV screen made reveals a complex and highly technical manufacturing process. From the preparation of ultra-clean glass substrates to the precise deposition of thin film transistors and color filters, every step requires meticulous attention to detail. The assembly of liquid crystals, integration of backlighting, and rigorous quality testing ensure that the final product delivers sharp, vibrant images. Advances in materials and technology continue to push the boundaries of LCD performance, making these screens a dominant choice for televisions worldwide. As environmental considerations and future innovations shape the industry, LCD technology remains a cornerstone of modern visual entertainment.
An LCD TV screen primarily uses glass substrates, liquid crystals, indium tin oxide for conductive layers, amorphous silicon for transistors, color filters made from organic dyes or pigments, polarizing films, and LED backlights.
The liquid crystals are injected into the narrow gap between the two glass substrates using a vacuum injection process to ensure even distribution without air bubbles.
Liquid crystals do not emit light themselves; they only modulate light passing through them. Therefore, a backlight, usually made of LEDs, is required to illuminate the screen so images can be seen.
Each thin film transistor acts as a tiny switch that controls the voltage applied to a pixel, determining how the liquid crystals orient and how much light passes through that pixel.
Manufacturers test for defects such as dead pixels, color uniformity, brightness consistency, contrast ratio, and overall functionality to ensure the screen meets quality standards before shipping.
