Liquid Crystal Displays (LCDs) have become ubiquitous in modern electronic devices, from smartphones and monitors to industrial equipment. While much attention is given to the display quality and resolution, an important yet often overlooked aspect is how LCD screen holes are made. These holes serve various purposes, including mounting, alignment, and integration with other components. Understanding how LCD screen holes are made sheds light on the precision engineering behind LCD manufacturing and the challenges involved.
x

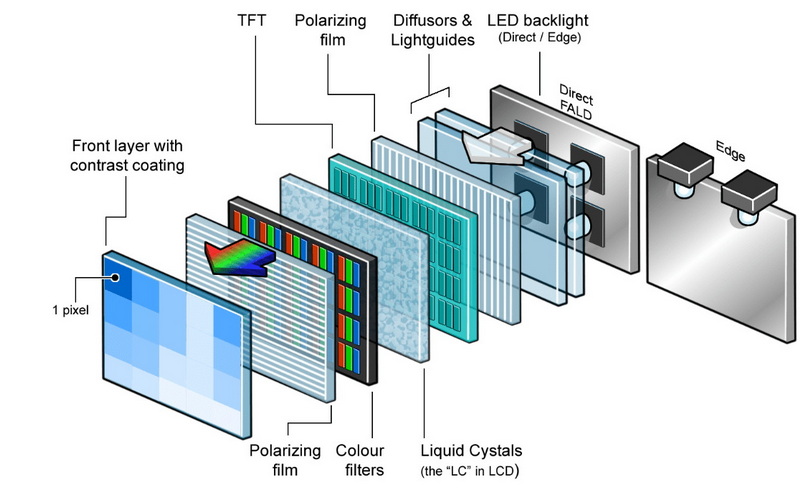

Before delving into how LCD screen holes are made, it is essential to understand the general LCD manufacturing process. LCD panels consist of several layers, including glass substrates, thin-film transistors (TFTs), color filters, liquid crystal material, and polarizers. The manufacturing involves photolithography to pattern the TFT backplane and color filters, precise alignment of glass layers, and filling the cell with liquid crystal material. These steps require cleanroom environments and semiconductor-like processes to ensure high quality and uniformity.
Holes in LCD screens are typically created during or after these manufacturing steps, depending on their function. They can be for mounting the display module to a device chassis or for routing cables and connectors. The holes must be made with extreme care to avoid damaging the delicate glass substrates or electronic circuits.
One common method for creating holes in LCD screens or their accompanying printed circuit boards (PCBs) is mechanical drilling or milling. This process uses specialized drill bits, often made of carbide, to bore precise holes through the glass or PCB material. The drilling speed and pressure must be carefully controlled to prevent cracking or chipping of the fragile glass substrate.
For LCD modules with PCBs, mounting holes typically have a standard diameter of about 3.5 millimeters. If larger holes are needed, the PCB can be redesigned, or the holes can be carefully enlarged using high-speed drills with light pressure and slow feed rates. However, drilling directly into the LCD panel glass is generally avoided due to the risk of damage.
In some cases, holes or openings in the LCD structure are created using photolithography combined with etching processes. Photolithography involves applying a photosensitive resist layer on the substrate, exposing it to UV light through a mask, and then chemically etching away the exposed or unexposed areas. This technique is precise and used extensively in patterning the thin-film transistor backplane and color filters.
While photolithography is primarily used for patterning circuits and color filters, it can also define openings or holes in certain layers of the LCD panel. This method is advantageous for creating very small, precise holes or vias that connect different layers electrically.
Laser drilling is a non-contact method that uses focused laser beams to ablate material and create holes. This technique is increasingly used for making holes in glass substrates because it minimizes mechanical stress and reduces the risk of cracking. Laser drilling can produce very small, clean holes with high precision.
The laser parameters, such as wavelength, pulse duration, and power, are optimized to vaporize the glass or other materials without causing thermal damage to surrounding areas. Laser drilling is especially useful for creating holes for backlight components or for integrating sensors within the LCD panel.
Mounting holes in LCD modules are critical for securing the display within a device. These holes are usually reinforced areas on the PCB or the glass substrate edges. The design must ensure that drilling or enlarging holes does not cut electrical traces or expose conductive paths to environmental contaminants, which could lead to failure.
If a larger mounting hole is required than the standard size, it is recommended to redesign the PCB layout to accommodate the new hole size rather than drilling larger holes post-manufacture. This redesign involves a non-recurring engineering (NRE) fee but ensures the integrity and longevity of the LCD module.
In some LCD manufacturing steps, holes or openings are temporarily left in the glass assembly to allow the injection of liquid crystal material. After filling, these holes are sealed with epoxy or other sealants to prevent leakage and contamination. The sealing process must be airtight and durable to maintain display performance.
Ultrasonic drilling is an advanced technique that uses high-frequency vibrations combined with abrasive slurry to create holes in brittle materials like glass. This method reduces mechanical stress and prevents cracking by gently removing material. Ultrasonic drilling is particularly useful for creating holes with complex shapes or in thick glass substrates where traditional drilling methods may fail.
Waterjet cutting uses a high-pressure stream of water mixed with abrasive particles to cut through materials. For LCD screen holes, waterjet cutting can be employed to create precise openings without heat generation, which is beneficial for maintaining the integrity of heat-sensitive components. However, waterjet cutting requires careful control to avoid water infiltration into sensitive layers.
Modern LCD screens often integrate touchscreen functionality, which adds complexity to how holes are made. The presence of touch sensors and conductive layers means that holes must be carefully positioned and insulated to avoid interference or short circuits. This integration requires collaboration between mechanical engineers and electrical designers to ensure hole placement does not compromise touchscreen performance.
After holes are made in LCD screens, rigorous quality control measures are necessary. Techniques such as optical microscopy, scanning electron microscopy (SEM), and X-ray inspection are used to verify hole dimensions, edge quality, and absence of cracks or defects. These inspections ensure that the holes meet design specifications and do not compromise the display's performance or durability.
Holes in LCD screens can be potential points of weakness where moisture, dust, or mechanical stress can cause damage. Therefore, manufacturers apply protective coatings, sealants, or reinforcements around holes to enhance durability. Additionally, the choice of materials and hole-making techniques considers the device's intended environment, such as outdoor use or industrial settings.
Creating holes in LCD screens involves several challenges:
- Fragility of Glass: The glass substrates are thin and brittle, making mechanical drilling risky without specialized equipment and procedures.
- Avoiding Electrical Damage: Holes must not interfere with the TFT circuits, conductive traces, or color filters.
- Precision Requirements: Holes must be precisely located and sized to fit mounting hardware or allow component integration.
- Environmental Protection: Exposed edges of holes can allow moisture ingress, leading to corrosion or display failure if not properly sealed.
- Cost and Time: Redesigning PCBs or using advanced laser drilling can increase manufacturing costs and lead times.
How LCD screen holes are made is a sophisticated process that blends mechanical, chemical, and optical techniques to meet the stringent requirements of modern display technology. Whether through careful mechanical drilling, photolithography, laser ablation, ultrasonic drilling, or design optimization, each hole in an LCD screen is engineered to preserve the display's integrity and functionality. Understanding these methods highlights the complexity behind seemingly simple features and the precision required in LCD manufacturing. As LCD technology evolves, innovations in hole-making techniques will continue to improve display performance, durability, and integration with other device components.
Drilling larger holes in an LCD screen or its PCB can cut electrical traces or damage the glass substrate, leading to malfunction or failure. It is safer to request a custom design from the manufacturer to accommodate larger holes.
Holes in LCD glass are typically made using laser drilling, which reduces mechanical stress and prevents cracking. Mechanical drilling is less common due to the fragility of glass.
During manufacturing, small openings are left in the glass assembly to inject liquid crystal material. After filling, these holes are sealed with epoxy to prevent leaks and contamination.
Photolithography can define openings or vias in certain layers of the LCD during patterning, especially for electrical connections, but it is not used for large mechanical holes.
Mounting holes are designed to avoid cutting traces or exposing conductive areas. If larger holes are needed, PCB redesign is preferred over post-manufacture drilling to ensure reliability.
