Connecting a Raspberry Pi to an LCD screen can open up a world of possibilities for your projects, whether you're creating a simple display for text or a more complex interface for interactive applications. This comprehensive guide will walk you through the steps to connect your Raspberry Pi to various types of LCD screens, including 16x2 character displays and more advanced TFT screens.
Before diving into the connections, it's essential to understand the different types of LCD screens you can use with your Raspberry Pi:
- Character LCDs (e.g., 16x2): These displays show text in a grid format. They are simple to use and ideal for displaying basic information such as sensor readings or status messages.
- TFT Displays: These are graphical displays that can show images and complex graphics. They often come with touch capabilities, making them suitable for interactive applications like dashboards or control panels.
- HDMI Displays: Standard monitors or TVs that connect via HDMI cable. These displays are versatile and can be used for a wide range of applications, from media centers to programming environments.
To connect an LCD screen to your Raspberry Pi, you will need the following components:
- Raspberry Pi: Any model will work, but the Raspberry Pi 3 or 4 is recommended for better performance.
- LCD Screen: Choose between a character display, TFT display, or HDMI monitor based on your project needs.
- Jumper Wires: For character and TFT displays, you will need jumper wires to make connections.
- Breadboard: Optional but useful for prototyping and organizing connections.
- Power Supply: Ensure you have a reliable power supply for the Raspberry Pi.
- Resistors: Depending on your LCD model, resistors may be necessary to limit current and protect the components.
Connecting a 16x2 character LCD is relatively straightforward. First, ensure that your Raspberry Pi is powered down before making any connections.

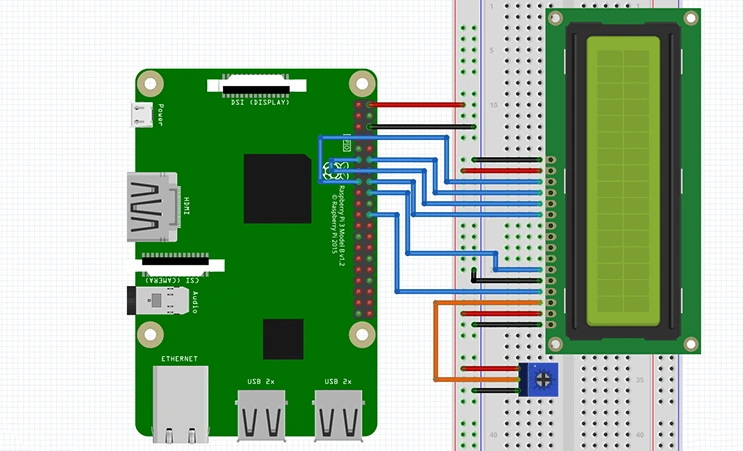

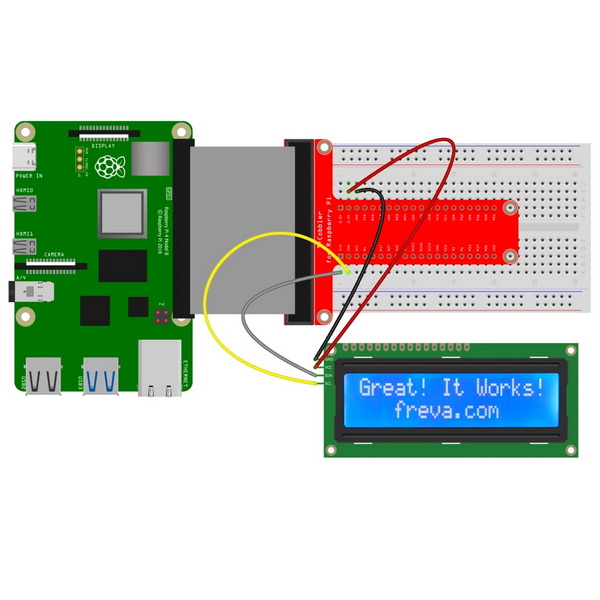

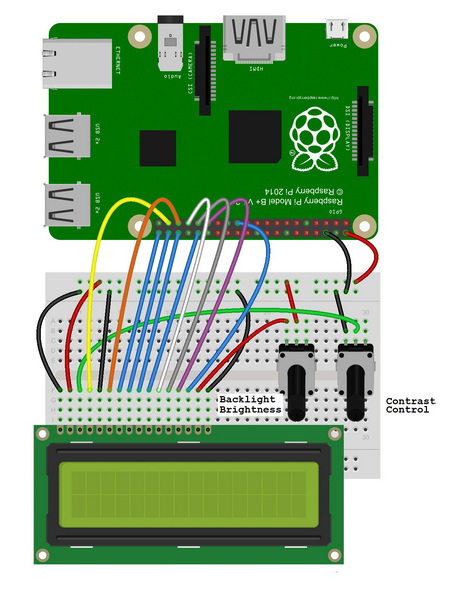

For a typical 16x2 LCD with an I2C interface, connect the pins as follows:
- GND: Connect this pin to any ground pin on the Raspberry Pi.
- VCC: Connect to a 5V pin on the Raspberry Pi.
- SDA (Serial Data Line): Connect to GPIO2 (Pin 3).
- SCL (Serial Clock Line): Connect to GPIO3 (Pin 5).
This wiring allows the Raspberry Pi to communicate with the LCD using the I2C protocol, which simplifies connections by using only two data lines.
To control the LCD effectively, you need to install specific libraries on your Raspberry Pi. This process involves using terminal commands to ensure that all necessary packages are installed.
Updating your package list is crucial before installing any new software. This ensures that you have access to the latest versions of libraries and tools available for your system.
Once you have connected your display and installed the necessary libraries, you can create a simple script that sends data to the LCD. This script can display messages or sensor readings on the screen.
For connecting a TFT display, the connections will vary based on the specific model you choose. Generally, you will connect:
- GND: Ground pin on Raspberry Pi.
- VCC: 5V pin on Raspberry Pi.
- SDA/SCL: For I2C communication if applicable.
- Other pins: Follow specific wiring instructions provided with your TFT model.
The versatility of TFT displays allows them to be used in various projects where graphical output is essential.
Similar to character displays, you'll need libraries tailored specifically for your TFT display model. This often involves cloning a library repository from GitHub and running installation scripts tailored for your specific display type.
Connecting an HDMI display is one of the simplest methods available:
1. Power down your Raspberry Pi before making any connections.
2. Use an HDMI cable to connect one end to the HDMI port on your Raspberry Pi and the other end to your monitor or TV.
3. Once connected, power up your Raspberry Pi.
HDMI displays offer high resolution and are perfect for applications requiring detailed visuals or video playback.
If you encounter issues while connecting or using your LCD screen, consider these troubleshooting tips:
- Ensure that all connections are secure and correctly wired according to specifications.
- Check if you have installed all necessary libraries and dependencies required for your display type.
- If using I2C communication, confirm that it is enabled in `raspi-config`, as this setting is often overlooked.
- For HDMI displays, ensure that they are powered on before starting up your Raspberry Pi; otherwise, they may not detect the signal correctly.
The applications of connecting an LCD screen to a Raspberry Pi are vast and varied:
You can create user interfaces for home automation systems that allow users to control lights, temperature settings, and security systems directly from an LCD screen.
By integrating sensors with an LCD screen, you can build a weather station that displays real-time data such as temperature, humidity, and atmospheric pressure.
Using an HDMI display turns your Raspberry Pi into a media center where you can stream videos or play games while displaying information about media playback on an additional connected screen.
LCD screens can be used in educational projects where students learn programming concepts by interacting with visual outputs in real-time.
You can create custom gaming consoles using TFT displays as interfaces for controls and graphics output, enhancing user experience in gaming applications.
For those looking to take their projects even further, consider using multiple displays simultaneously:
Create dashboards that show different types of information across multiple screens—such as system performance metrics on one screen while displaying user notifications on another.
In museums or educational settings, multiple screens can be used together to create interactive exhibits that engage visitors through dynamic content displayed across several panels.
Connecting a Raspberry Pi to an LCD screen can significantly enhance your projects by allowing better interaction and visualization of data. Whether you choose a simple character display or a complex TFT screen, understanding how to set up and troubleshoot these connections is crucial for successful project development.
With various applications ranging from home automation systems to educational tools and gaming projects, the possibilities are endless when it comes to utilizing LCD screens with Raspberry Pi technology.
I2C (Inter-Integrated Circuit) is a communication protocol used to connect low-speed devices like sensors and displays over short distances using two wires—SDA (data line) and SCL (clock line).
You can enable I2C by running `sudo raspi-config`, navigating to "Interfacing Options," and selecting "I2C." This allows your system to communicate with I2C devices properly.
Yes! You can connect multiple I2C devices as long as they have unique addresses assigned within their respective configurations.
If there's no output on your display, check all connections carefully—ensure they are secure—and verify that power is supplied correctly while confirming that you've installed necessary libraries.
To change what is displayed on your character LCD, modify the string in your script responsible for sending data; this allows you to update messages dynamically based on user input or sensor readings.
This guide provides a solid foundation for connecting various types of LCD screens to your Raspberry Pi while enabling exploration into countless project possibilities!
