The Honeywell Home T5 Z-Wave 7-Day Programmable Thermostat with Touchscreen Display is a versatile smart thermostat designed to provide personalized comfort and energy savings. Its touchscreen interface makes it easy to program, control, and monitor your home's heating and cooling system. This comprehensive guide will walk you through the entire process of setting up and using the touchscreen on this thermostat, ensuring you get the most out of its features.
Before diving into setup and usage, it's important to understand what the Honeywell Home T5 Z-Wave 7-Day Programmable Thermostat with Touchscreen Display offers:
- It supports 7-day programmable scheduling with up to 4 periods per day.
- The touchscreen allows intuitive control and programming.
- Z-Wave technology enables integration with smart home systems.
- Compatible with conventional heating/cooling systems and heat pumps.
- Features include scheduling, screen lock, temperature hold, auto changeover, and more.
To install and set up the thermostat, you will need:
- A Phillips screwdriver and a small flathead screwdriver.
- Your home Wi-Fi network name and password (if using Wi-Fi features).
- A smartphone or tablet with the Resideo app installed (for remote control and advanced setup).
- The thermostat and wall plate.
1. Turn off power to your HVAC system to ensure safety.
2. Remove your old thermostat and label the wires according to their terminals.
3. Attach the wall plate of the Honeywell T5 thermostat to the wall using the screws provided.
4. Connect the wires to the corresponding terminals on the thermostat base. The thermostat requires a C-wire for power.
5. Snap the thermostat display onto the wall plate until it clicks into place.
- Restore power to your HVAC system.
- The thermostat touchscreen will light up and guide you through initial setup.
- Select your preferred temperature scale (Fahrenheit or Celsius).
- Assign a name to your thermostat (e.g., Living Room or Downstairs).
- Configure your heating and cooling system type (forced air, heat pump, etc.).
- On the thermostat touchscreen, press and hold the center of the display to start network setup.
- Open the Resideo app on your smartphone.
- Add a new device and select the T5 Wi-Fi Thermostat.
- Follow the app instructions to connect the thermostat to your home Wi-Fi.
- To enable Z-Wave functionality, include the thermostat into your Z-Wave smart home network via your hub or controller.

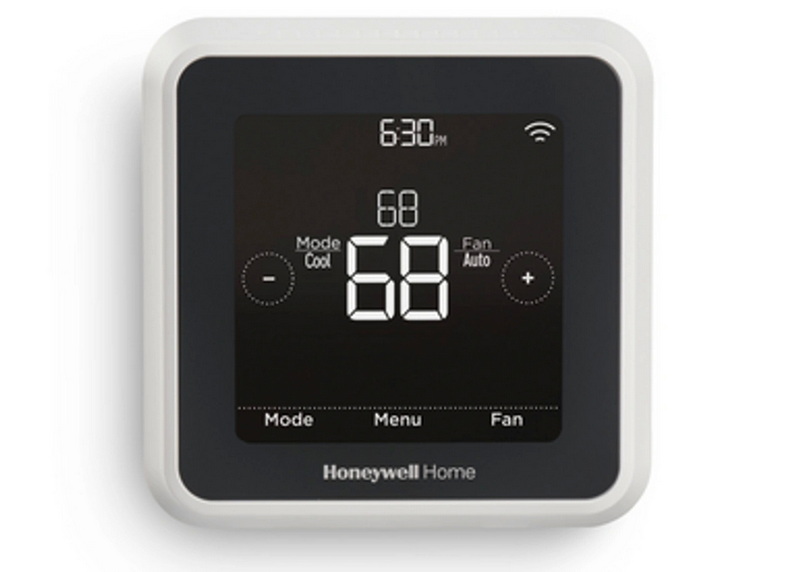

The main screen displays:
- Current temperature.
- System mode (heat, cool, auto, off).
- Fan status.
- Scheduled program status.
Touch the screen to access menus and settings.
The thermostat allows programming 4 time periods per day for each day of the week:
1. Touch Menu on the touchscreen.
2. Select Schedule.
3. Choose the day you want to program.
4. For each period (Wake, Away, Home, Sleep), set the start time and desired temperature.
5. Use the plus and minus icons to adjust times in 15-minute increments.
6. Switch between heating and cooling setpoints by touching the temperature display.
7. Press Select to save each period.
8. Repeat for all days or use the 5-2 schedule option to program weekdays and weekends separately.
9. Once complete, touch Done and save your schedule.
- From the main screen, tap the current temperature.
- Adjust the temperature using plus or minus buttons.
- The thermostat will display a “Hold Until” message showing when the next scheduled change will occur.
- You can choose to hold the temperature permanently or until the next scheduled period.
- To prevent unauthorized changes, activate screen lock from the Menu.
- Choose between Unlocked, Partial Lock (allows setpoint changes only), or Full Lock (no changes allowed).
- The lock icon appears on the display when active.
- Adjust inactive screen brightness in the settings to your preference.
- Auto Changeover: Automatically switches between heating and cooling based on temperature.
- Clean Screen Mode: Temporarily disables the touchscreen for cleaning.
- Recovery: Allows the thermostat to pre-heat or pre-cool to reach the set temperature by the scheduled time.
- Device Info: View MAC ID, firmware version, and other technical details.
- If the touchscreen becomes unresponsive, use the Clean Screen feature to wipe it safely.
- To reset the thermostat to factory settings, access the Reset option in the menu.
- For Z-Wave network issues, ensure your hub is functioning and the thermostat is included properly.
- Regularly check for firmware updates via the Resideo app to keep your thermostat optimized.
Setting up and using the touchscreen on the Honeywell Home T5 Z-Wave 7-Day Programmable Thermostat with Touchscreen Display is straightforward and user-friendly. With its intuitive interface and flexible programming options, you can customize your home's heating and cooling schedule to maximize comfort and efficiency. Integrating with smart home systems through Z-Wave further enhances its convenience. By following the steps outlined in this guide, you will be able to install, program, and operate your thermostat with confidence, ensuring your home environment stays comfortable year-round.
To program the schedule, touch Menu, select Schedule, then choose each day and time period to set start times and temperatures. Adjust heating and cooling setpoints and save each period. Repeat for all days or use the 5-2 schedule option for weekdays and weekends.
Yes, by connecting the thermostat to your home Wi-Fi and using the Resideo app, you can control and monitor your thermostat remotely from your smartphone or tablet.
Include the thermostat into your Z-Wave network using your smart home hub or controller. Follow your hub's instructions to add a new Z-Wave device, then initiate inclusion mode on the thermostat.
Activate the Clean Screen mode from the menu to disable the screen temporarily, then gently wipe it with a damp cloth. If issues persist, try a factory reset via the Reset option in the menu.
Go to Menu > Screen Lock and select the desired lock level: Unlocked, Partial Lock (only setpoint changes allowed), or Full Lock (no changes allowed). The lock icon will appear on the display when active.
