When considering a 15 replacement touchscreen display with control board for your system, compatibility is a critical factor to ensure seamless integration and optimal performance. This comprehensive article explores the essential aspects of compatibility, technical specifications, and installation considerations for a 15-inch touchscreen display with a control board. It aims to guide you through the process of determining whether a particular 15 replacement touchscreen display with control board will work with your existing system.
A 15 replacement touchscreen display with control board is a complete module that includes the touchscreen panel itself and the associated control electronics necessary to interface the display with your computer or embedded system. These assemblies are commonly used in industrial applications, point-of-sale (POS) systems, kiosks, and DIY projects where the original display has failed or an upgrade is desired.
- Touchscreen Panel: Typically a 15-inch diagonal LCD, either resistive or capacitive touch technology, with resolutions commonly ranging from 1024x768 to Full HD 1920x1080.
- Control Board: The electronic board that manages video input signals and touch input signals, converting them into a format your system can understand.
- Connectors: Video input connectors such as HDMI, VGA, DisplayPort, or USB-C, and touch interface connectors, often USB or I⊃2;C.
- Mounting Hardware: VESA mounts or bezels for installation flexibility.
The resolution of the replacement touchscreen must match or be supported by your system's graphics output. Common resolutions for 15-inch displays include:
- 1024 x 768 (XGA), often with a 4:3 aspect ratio.
- 1920 x 1080 (Full HD), typically with a 16:9 aspect ratio.

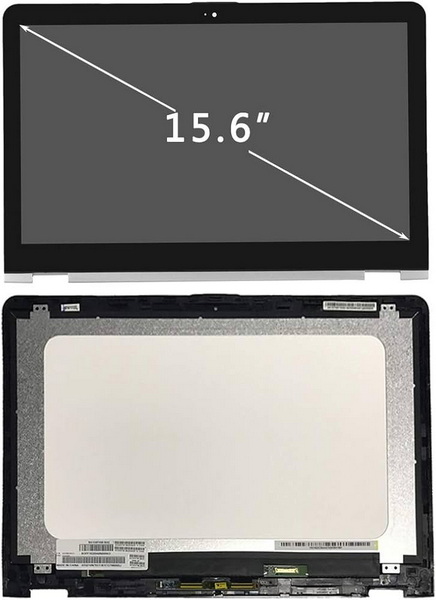

Choosing a display with the correct resolution ensures that the image is rendered correctly without distortion or scaling issues. For example, a 15.6-inch Full HD IPS touchscreen display with a 1920x1080 resolution offers crisp visuals and is widely compatible with modern systems.
There are two main types of touch technologies in 15-inch replacement displays:
- Resistive Touch: Uses pressure to detect touch, compatible with any pointing device, but generally single-touch.
- Capacitive Touch: Uses the electrical properties of the human body, supports multi-touch, and is more responsive.
Your system must support the touch interface type. Capacitive touchscreens usually connect via USB and are recognized as human interface devices (HID), while resistive touchscreens may use USB or serial interfaces. The control board must support the touchscreen technology of the display to ensure the touch function works properly.
The control board must have video input interfaces compatible with your system's video output. Common interfaces include:
- HDMI
- VGA
- DisplayPort
- USB-C (with DisplayPort Alt Mode)
For example, a 15 replacement touchscreen display with control board that supports HDMI and USB-C inputs can connect to a wide range of devices, including PCs, laptops, and single-board computers like Raspberry Pi or LattePanda.
The physical connectors and pin configurations on the LCD panel and control board must match. Laptop LCD panels and their controller boards are often specific to certain models due to proprietary connectors and firmware. For standalone 15-inch replacement touchscreen displays, standard connectors like 30-pin eDP or LVDS are common, but you must verify the exact model and connector type to ensure compatibility.
The touchscreen control board should be compatible with the operating system you are using. Most capacitive touchscreens with USB interfaces are plug-and-play on Windows, Linux, and macOS. Resistive touchscreens may require specific drivers or calibration software. Confirm that the control board manufacturer provides drivers or that the device is supported natively by your OS.
Ensure that the replacement touchscreen display with control board can be powered by your system or an external power supply compatible with your setup. Some control boards require 12V DC power adapters, while others may draw power through USB-C or other means.
The replacement touchscreen must physically fit into your device or enclosure. Check the external dimensions, bezel size, and mounting hole patterns (e.g., VESA 100x100 mm) to ensure a proper fit. Many 15-inch touchscreens come with mounting options for flush, desktop, wall, or panel installation.
Proper cable management is essential to avoid damage and interference. The touchscreen cable must connect securely to the control board, and the control board must connect properly to your system's video output and power source. Incorrect cable connections can cause touch unresponsiveness or display issues.
After installation, calibration may be necessary, especially for resistive touchscreens. Capacitive touchscreens generally do not require calibration. Testing the touchscreen functionality and display quality before finalizing installation helps identify any compatibility issues early.
- Cost-Effective Repair: Replacing only the touchscreen and control board can be more economical than buying a new system.
- Customization: Allows upgrading to higher resolution or multi-touch capabilities.
- Extended System Life: Restores functionality to aging equipment.
- Wide Compatibility: Many replacement kits support multiple input types and operating systems.
- Non-Standard Connectors: Laptop panels often have proprietary connectors requiring specific control boards.
- Touchscreen Driver Issues: Some touchscreens may not work correctly without proper drivers.
- Physical Fit: Replacement displays may not fit perfectly without modification.
- Calibration Needs: Resistive touchscreens often need manual calibration post-installation.
When selecting a 15 replacement touchscreen display with control board, consider the environment where the system will operate. Industrial environments may require displays with enhanced durability, such as reinforced glass, higher brightness for outdoor visibility, or wider operating temperature ranges. Consumer or office environments typically do not demand such rugged features but may prioritize aesthetics and slimmer profiles.
Some control boards allow firmware updates to improve compatibility or add features. Before purchasing, check if the manufacturer provides firmware upgrade options and whether these updates are user-friendly. Firmware updates can resolve bugs, improve touch accuracy, and expand device support.
A reliable warranty and responsive technical support can be crucial when integrating a 15 replacement touchscreen display with control board. Since compatibility issues can sometimes arise unexpectedly, having access to expert assistance and replacement options ensures smoother troubleshooting and peace of mind.
Choosing a replacement display with modern interfaces such as USB-C and support for multi-touch gestures can future-proof your system. This ensures compatibility with upcoming devices and software enhancements, making your investment more sustainable over time.
Determining if a 15 replacement touchscreen display with control board is compatible with your system involves careful consideration of several factors including resolution, touch technology, video input interface, connector types, operating system support, physical dimensions, and environmental requirements. Ensuring compatibility requires verifying the technical specifications of both your system and the replacement module. When properly matched, a 15 replacement touchscreen display with control board can provide a reliable, cost-effective solution to restore or upgrade your device's touchscreen functionality, enhancing user interaction and extending the life of your system.
Check the display resolution, video input interface (HDMI, VGA, USB-C), and touch technology compatibility. Verify the connector type and ensure your system supports the touchscreen drivers. Matching these specifications with your system's requirements is essential for compatibility.
Yes, many industrial displays are compatible with consumer systems if the video and touch interfaces match. However, industrial models may have different mounting options and rugged features that may not be necessary for consumer use.
Capacitive touchscreens offer multi-touch support and better responsiveness, suitable for modern applications. Resistive touchscreens are more affordable and work with any pointing device but usually support only single-touch.
Calibration is typically required for resistive touchscreens to ensure accurate touch response. Capacitive touchscreens usually do not require calibration as they are recognized automatically by the operating system.
Drivers are usually provided by the manufacturer of the control board or touchscreen assembly. For USB capacitive touchscreens, most modern operating systems have native support and do not require additional drivers.
