The Adafruit PiTFT 2.8-inch touchscreen display is a popular accessory designed to add a compact, interactive display to Raspberry Pi projects. However, the question of compatibility across all Raspberry Pi models is nuanced and depends on several factors including the Pi model's GPIO header, physical form factor, and software support. This article provides an in-depth exploration of the compatibility of the Adafruit PiTFT 2.8 touchscreen display with various Raspberry Pi models, technical considerations, installation tips, and practical usage scenarios.

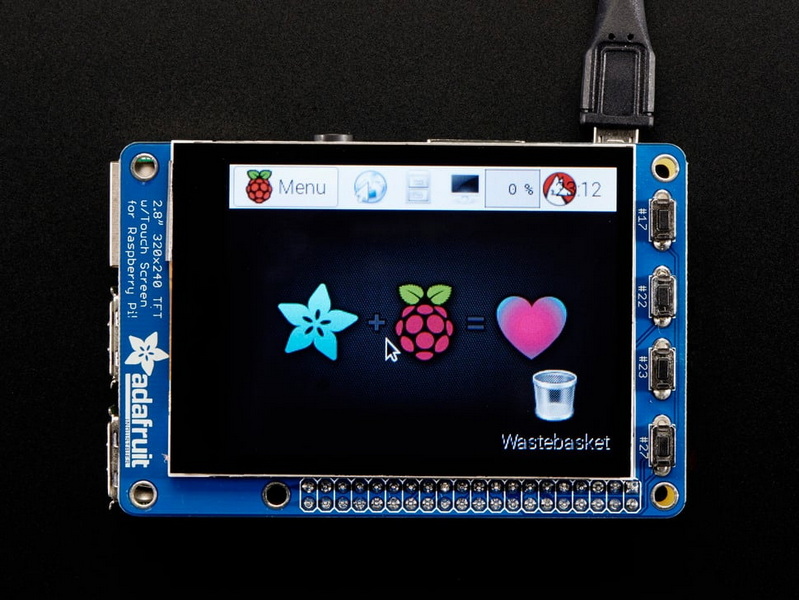

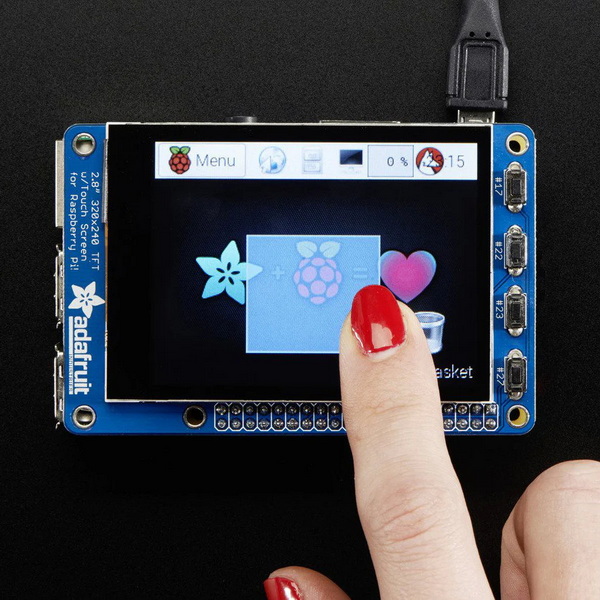

The Adafruit PiTFT 2.8-inch display features a 320x240 pixel TFT screen with either a resistive or capacitive touchscreen overlay. The resistive version requires a stylus or fingernail for input, while the capacitive version supports finger touch input similar to modern smartphones, offering a more responsive and intuitive experience.
This display connects directly to the Raspberry Pi's 2x20 GPIO header, utilizing hardware SPI pins (SCK, MOSI, MISO, CE0) and I2C pins (SDA, SCL) for communication. It also uses GPIO pins #24 and #25 for touchscreen control and includes four slim tactile switches wired to GPIOs for additional input options such as power buttons or user interface controls.
Physically, the PiTFT 2.8 is designed to fit neatly on Raspberry Pi models with a 2x20 GPIO connector, including the Pi Zero, Pi 2, Pi 3, Pi 4, and the Model A+ and B+ variants. However, it is not compatible with older Raspberry Pi models that have a 2x13 GPIO header, such as the original Pi 1 Model A and B[1][2][6][7].
The Adafruit PiTFT 2.8 is fully compatible with Raspberry Pi models that feature a 2x20 GPIO header. This includes:
- Raspberry Pi Zero and Zero W
- Raspberry Pi 2 (Model B)
- Raspberry Pi 3 (Model B and B+)
- Raspberry Pi 4 (Model B)
- Raspberry Pi Model A+ and B+
On these models, the PiTFT 2.8 plugs directly onto the GPIO pins, providing a compact and integrated display solution. However, users should be aware that on some older models like the Pi 4, the PiTFT PCB may slightly overhang the USB ports by approximately 5mm, which could be a consideration for certain enclosures or setups[1][2][6][7].
Older Raspberry Pi models such as the original Pi 1 Model A and B have a 2x13 GPIO header. The PiTFT 2.8 is not compatible with these models due to the difference in pin layout and physical connector size. The PiTFT Plus 2.8 and other newer versions are specifically designed for the 2x20 header and cannot be used directly on these older boards without adapters or modifications, which are generally not recommended[2][6][7].
The Raspberry Pi 400 has a unique form factor and GPIO layout that differs from standard Raspberry Pi boards. Some users have reported difficulties in getting the PiTFT 2.8 to work correctly on the Pi 400, especially when combined with certain HATs or custom setups like Cyberdeck configurations. While it is possible to use the PiTFT 2.8 with the Pi 400, it often requires additional configuration and careful installation steps, and may not be as straightforward as with standard Pi models[2].
The PiTFT 2.8 uses the SPI interface for display data transfer and I2C for touchscreen control. It relies on specific GPIO pins for these functions, which are standard on Raspberry Pi models with the 2x20 header. This direct GPIO connection allows for a compact assembly without the need for extra cables or adapters.
However, this tight integration means that models without the correct GPIO layout or those with altered pin configurations may face compatibility issues. Additionally, the use of hardware SPI pins means that other devices using SPI on the same Pi may require careful configuration to avoid conflicts[1][2][6].
Adafruit provides custom kernel packages and installation scripts to enable the PiTFT 2.8 display on supported Raspberry Pi OS versions. These scripts configure the framebuffer, touchscreen calibration, and optional console output to the PiTFT. The installation process is generally straightforward on supported Pi models but can be challenging on unsupported or older models.
Users have reported issues with certain Raspberry Pi OS releases or newer OS versions, where the PiTFT does not display correctly or the touchscreen is unresponsive. In some cases, reverting to older OS versions like Raspberry Pi OS Legacy Bullseye Lite has resolved compatibility problems. Adafruit's community forums and tutorials offer guidance on installation and troubleshooting[3][4][5].
While the PiTFT 2.8 is designed to fit neatly on many Raspberry Pi boards, some models experience a slight overhang of the PCB beyond the USB ports. This can affect the choice of enclosure or case and may require custom modifications or the use of the PiTFT Plus version, which is designed to match the outline of newer Pi models and expose all 40 GPIO pins for easier expansion[1][2][6].
The PiTFT 2.8's compact 320x240 resolution and small physical size make it ideal for embedded projects, portable devices, and custom user interfaces where space is limited. It supports console access and graphical environments like X11, though its small screen size limits its suitability for full desktop use.
The inclusion of tactile buttons and touch capability allows for versatile input options, useful in projects such as handheld gaming devices, control panels, or simple kiosks[1][2][6].
The low resolution and small screen size mean the PiTFT 2.8 is not suitable for multimedia-heavy applications, detailed graphics, or web browsing. Users requiring higher resolution or larger displays may prefer the official 7-inch Raspberry Pi touchscreen or HDMI monitors.
Compatibility issues with certain Raspberry Pi models and OS versions can also limit the PiTFT's usability. Additionally, resistive touchscreens require more precise input compared to capacitive versions, which may affect user experience[2][4][5].
Installing the PiTFT 2.8 involves running Adafruit's installation scripts, enabling SPI in the Raspberry Pi configuration, and calibrating the touchscreen. Adafruit's detailed tutorials guide users through these steps.
If the display does not work as expected, users should verify the following:
- The Pi model has a 2x20 GPIO header.
- The PiTFT is properly seated on the GPIO pins.
- SPI is enabled in the Raspberry Pi OS configuration.
- The correct installation script and OS version are used.
- No hardware defects exist in the display unit.
Some users have encountered defective units or software incompatibilities, which can be resolved by testing on different Pi models, trying older OS versions, or seeking support from Adafruit's community forums[3][4][5].
The Adafruit PiTFT 2.8 touchscreen display is compatible with a wide range of Raspberry Pi models that feature a 2x20 GPIO header, including the Pi Zero, Pi 2, Pi 3, Pi 4, and Model A+ and B+. It is not compatible with older Raspberry Pi models with 2x13 GPIO headers, such as the original Pi 1 Model A and B. While it can work with the Raspberry Pi 400, additional configuration may be necessary due to the Pi 400's unique form factor.
This display offers a compact, integrated touchscreen solution ideal for embedded projects and custom interfaces but has limitations in screen size and resolution for full desktop use. Proper installation and software configuration are essential for optimal performance, and users may need to troubleshoot compatibility issues depending on their Pi model and OS version.
For those seeking a small, easy-to-install touchscreen with direct GPIO integration, the Adafruit PiTFT 2.8 remains an excellent choice within its compatibility range.
No, the original Raspberry Pi Model B has a 2x13 GPIO header, which is not compatible with the PiTFT 2.8 designed for 2x20 headers. The PiTFT Plus and original PiTFT 2.8 require a 2x20 GPIO connector found on newer models[2][6].
The PiTFT 2.8 can be used with the Raspberry Pi 400, but users may face difficulties due to the Pi 400's unique form factor and GPIO layout. Additional configuration and setup steps are often required to get the display working properly[2].
Yes, Adafruit offers both resistive and capacitive touchscreen versions of the PiTFT 2.8. The resistive version requires a stylus or fingernail for input, while the capacitive version supports finger touch input and multi-touch gestures[2][6][7].
The PiTFT 2.8 works best with Raspberry Pi OS versions that support SPI and have compatible kernel modules. Some users have found better success with Raspberry Pi OS Legacy Bullseye Lite or earlier versions. Adafruit provides installation scripts that are updated periodically to support newer OS releases[3][4][5].
First, ensure the display is properly connected and SPI is enabled. Run the Adafruit installation scripts again and calibrate the touchscreen. If issues persist, try using a different Raspberry Pi model or OS version. Defective hardware is also a possibility, so testing with a replacement unit may be necessary[3][4][5].
