The Raspberry Pi 7 inch 800x480 DSI touchscreen display is a popular accessory designed to enhance the Raspberry Pi experience by providing a compact, interactive, and portable display solution. This article explores the suitability of this touchscreen display for portable builds, examining its features, compatibility, performance, and practical applications. We will also compare it with other display options and provide insights into its strengths and limitations for portable projects.

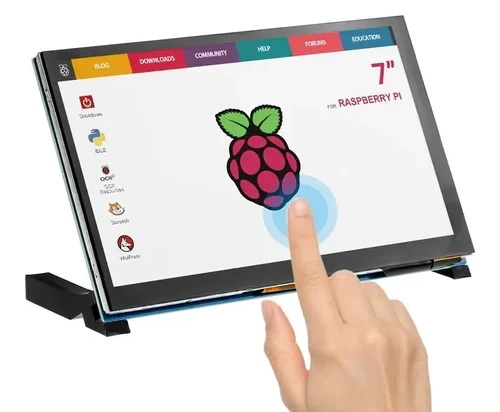

The official Raspberry Pi 7 inch touchscreen display features a 7-inch diagonal screen with a resolution of 800 by 480 pixels, connected via a ribbon cable to the Raspberry Pi's DSI (Display Serial Interface) port. It supports true multi-touch capacitive touch technology, allowing up to 10 simultaneous touch points. The display is powered directly from the Raspberry Pi's GPIO pins, eliminating the need for an external power supply. This tight integration makes it a streamlined and compact solution ideal for many Raspberry Pi projects.
Key specifications include:
- Screen size: 7 inches diagonal
- Resolution: 800 x 480 pixels
- Touch technology: Capacitive multi-touch (up to 10 fingers)
- Connection: Ribbon cable to DSI port, power from GPIO pins
- Compatibility: Works with Raspberry Pi 2, 3, 4, and 5 models (not compatible with Raspberry Pi Zero or Pi 400)
- Software: Native support in Raspberry Pi OS with drivers and on-screen keyboard
This display is designed to create interactive projects such as tablets, media centers, information kiosks, and embedded systems without the need for external input devices like keyboards or mice.
The Raspberry Pi 7 inch 800x480 DSI touchscreen display connects directly to the Raspberry Pi via a ribbon cable and draws power from the Pi's GPIO pins. This reduces cable clutter and external power requirements, making it highly suitable for portable and battery-powered builds. The included adapter board manages power and signal conversion efficiently, allowing the display and Pi to be mounted together in a compact form factor.
Supporting up to 10 simultaneous touch points, the display enables sophisticated multi-touch gestures such as pinch-to-zoom, swiping, and multi-finger taps. This enhances user interaction and makes it ideal for tablets, kiosks, and other interactive portable devices.
Despite its modest resolution, the 7-inch display offers clear and vibrant visuals with a 24-bit color depth and wide viewing angles. This ensures that content remains visible and sharp from different perspectives, which is important for portable devices that might be used in various orientations or by multiple users.
The display enjoys native support in the Raspberry Pi OS, including touchscreen drivers and an on-screen keyboard. This eliminates the need for additional software installation and allows users to operate the device without external peripherals, enhancing portability.
The screen typically consumes around 350-390mA at 5V, which is relatively low power consumption. This makes it practical for battery-operated projects where power efficiency is critical to prolong runtime.
The 800x480 pixel resolution is sufficient for many applications but may feel limiting for projects requiring high-definition visuals or detailed graphical interfaces. Users seeking sharper images or more screen real estate might consider higher-resolution alternatives like the Raspberry Pi Touch Display 2 or third-party options with 1024x600 resolution.
The Raspberry Pi 7 inch touchscreen display is not compatible with Raspberry Pi Zero models or the Pi 400 due to the absence of a DSI connector on those devices. This limits its use in ultra-compact or specialized Raspberry Pi builds that use these models.
For portable builds, the display's physical robustness is a consideration. While the official display includes mounting hardware for secure attachment, additional protective cases or enclosures are recommended to safeguard against impacts and environmental damage during transport.
Although the display is powered from the Pi's GPIO pins, portable projects relying on battery power must ensure adequate power management to maintain stability and extend battery life. Using a high-quality power source and efficient battery solutions is essential to avoid issues like screen flickering or touch unresponsiveness.
The display's compact size and multi-touch support make it ideal for creating Raspberry Pi-powered tablets or handheld devices. Its native touchscreen drivers and on-screen keyboard facilitate a fully functional portable computer without additional peripherals.
Users can build portable media centers using software like Kodi or Plex, navigating content through the touchscreen interface. The display's size and resolution are well-suited for video playback and media browsing on the go.
The touchscreen enables the creation of portable kiosks or information terminals for events, retail, or educational purposes. Its portability allows easy relocation and deployment in various environments.
With the Raspberry Pi's emulation capabilities and the touchscreen's responsiveness, users can build portable gaming consoles featuring touch controls or combined with physical buttons for enhanced gameplay.
The display can serve as a mobile control panel for smart home systems, environmental monitoring, or IoT devices, providing an intuitive interface to monitor and control connected devices remotely.
| Feature | Raspberry Pi 7 Inch 800x480 DSI Touchscreen | Raspberry Pi Touch Display 2 (720x1280) | SunFounder TS-7 Pro (1024x600) |
|---|---|---|---|
| Resolution | 800 x 480 pixels | 720 x 1280 pixels | 1024 x 600 pixels |
| Touch Points | 10-finger capacitive | 5-finger capacitive | Multi-touch capacitive |
| Connection | DSI ribbon cable, power from GPIO | DSI ribbon cable, power from GPIO | HDMI + USB (power via USB) |
| Compatibility | Pi 2, 3, 4, 5 (not Zero or Pi 400) | Similar to official display | Works with any Pi with HDMI & USB |
| Power Supply | Powered by Pi GPIO pins | Powered by Pi GPIO pins | Requires separate power source |
| Price Range | Moderate | Slightly higher | Variable, often higher |
| Suitable for Portable Builds | Yes, compact and integrated | Yes, slimmer design | Yes, but requires more cables |
The official Raspberry Pi 7 inch 800x480 DSI touchscreen display offers excellent integration and ease of use for portable projects, while alternatives may provide higher resolution or broader compatibility at the cost of additional power and connectivity complexity.
Ensure you have a compatible Raspberry Pi model (2, 3, 4, or 5) and the latest Raspberry Pi OS installed for full touchscreen support.
Attach the DSI ribbon cable from the display to the Pi's DSI port. Connect the power jumper wires from the display's adapter board to the Pi's GPIO pins to power the display.
Use the included stand-offs and screws to mount the Raspberry Pi to the back of the display, creating a compact and portable unit.
Update the Raspberry Pi OS to ensure the touchscreen drivers and on-screen keyboard are enabled. Calibrate the touchscreen if necessary.
For portable builds, connect a suitable battery pack or portable power bank that can supply stable 5V power to the Raspberry Pi and display.
Utilize Python or other programming languages to create interactive applications that leverage the touchscreen capabilities.
The Raspberry Pi 7 inch 800x480 DSI touchscreen display is a solid choice for portable builds, offering a compact, integrated, and user-friendly solution. Its multi-touch capacitive technology, native software support, and power efficiency make it well-suited for a wide range of portable projects including tablets, media centers, kiosks, and IoT control panels. While its resolution is modest compared to newer or third-party displays, its seamless integration with Raspberry Pi hardware and software provides a hassle-free experience for many users.
For those requiring higher resolution or compatibility with Raspberry Pi Zero models, alternative HDMI-based touchscreens might be preferable. However, for most portable Raspberry Pi projects, the official 7 inch touchscreen display strikes a good balance between functionality, portability, and cost.
The display is compatible with Raspberry Pi 2, 3, 4, and 5 models. It is not compatible with Raspberry Pi Zero series or Pi 400 due to the absence of a DSI connector on those models.
Yes, it supports true capacitive multi-touch with up to 10 simultaneous touch points, enabling complex gestures like pinch-to-zoom and multi-finger taps.
The display is powered directly from the Raspberry Pi's GPIO pins, which simplifies wiring and eliminates the need for an external power supply. For portable use, a battery pack powering the Raspberry Pi will also power the display.
No, the latest Raspberry Pi OS includes native drivers and an on-screen keyboard for full touchscreen functionality out of the box.
Yes, its low power consumption and integrated power design make it suitable for battery-powered portable builds. Proper power management and a reliable battery source are recommended to ensure stable operation.
