What Can You Do with The Raspberry Pi 7 Touchscreen Display From Element14?

Views: 222     Author: Wendy     Publish Time: 2025-05-13      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

What Is the Raspberry Pi 7 Touchscreen Display Element14?

Key Features of the Raspberry Pi 7 Touchscreen Display Element14

What Can You Do with the Raspberry Pi 7 Touchscreen Display Element14?

>> Create Portable Tablets and Media Players

>> Develop Home Automation and IoT Interfaces

>> Build Educational Tools and Interactive Learning Devices

>> Design Embedded Systems and Control Panels

>> Create Retro Gaming Consoles with Touch Controls

Technical Overview of the Raspberry Pi 7 Touchscreen Display Element14

>> Hardware Specifications

>> Software and Driver Support

Practical Benefits of Using the Raspberry Pi 7 Touchscreen Display Element14

>> Reduced Peripheral Dependence

>> Improved Project Aesthetics and Usability

>> Customizable and Expandable

>> Energy Efficiency

How to Set Up the Raspberry Pi 7 Touchscreen Display Element14

>> Step 1: Prepare Your Raspberry Pi

>> Step 2: Connect the Hardware

>> Step 3: Configure Software

>> Step 4: Develop Touch-Enabled Applications

Conclusion

FAQ

>> 1. What Raspberry Pi models are compatible with the Raspberry Pi 7 touchscreen display element14?

>> 2. Does the 7-inch touchscreen support multi-touch gestures?

>> 3. How is the touchscreen powered?

>> 4. Is additional software required to use the touchscreen?

>> 5. Can I use the touchscreen for portable or battery-powered projects?

The Raspberry Pi 7 Touchscreen Display from Element14 is a versatile and powerful accessory that significantly expands the capabilities of the Raspberry Pi single-board computer. This article explores what you can do with the Raspberry Pi 7 touchscreen display element14, detailing its features, technical specifications, practical applications, setup process, and frequently asked questions to provide a comprehensive understanding of this device.

Element14 Raspberry Pi Display

What Is the Raspberry Pi 7 Touchscreen Display Element14?

The Raspberry Pi 7 touchscreen display element14 is a 7-inch capacitive multi-touch display designed specifically for Raspberry Pi computers. It features an 800 x 480 pixel resolution and supports up to 10 simultaneous touch points, enabling rich interactive experiences. The display connects to the Raspberry Pi via a ribbon cable to the DSI (Display Serial Interface) port and is powered through the Pi's GPIO pins, simplifying wiring and reducing clutter. It includes an adapter board that manages power and signal conversion, ensuring smooth operation and integration with the Raspberry Pi ecosystem.

Key Features of the Raspberry Pi 7 Touchscreen Display Element14

- 7-inch capacitive multi-touch screen with support for up to 10 fingers, enabling complex gestures such as pinch, zoom, and swipe.

- Resolution of 800 x 480 pixels, providing clear and crisp visuals suitable for a wide range of applications.

- Compact dimensions (approximately 194mm x 110mm x 20mm including mounting hardware), making it portable and easy to integrate.

- Simple connectivity through a DSI ribbon cable and power from GPIO pins, requiring only two connections to the Raspberry Pi.

- Native driver support in the latest Raspberry Pi OS, including an on-screen keyboard, eliminating the need for external input devices.

- Wide viewing angles and 24-bit color depth, ensuring vibrant and consistent image quality from multiple perspectives.

- Low power consumption of roughly 350-390mA at 5V, ideal for battery-powered or portable projects.

What Can You Do with the Raspberry Pi 7 Touchscreen Display Element14?

Create Portable Tablets and Media Players

By combining the Raspberry Pi with the 7-inch touchscreen display, you can build custom portable tablets or media players. The touchscreen interface allows for intuitive control of media playback, browsing, and app interaction without the need for a keyboard or mouse. This setup is perfect for on-the-go entertainment or custom digital signage.

Develop Home Automation and IoT Interfaces

The touchscreen display enables the creation of interactive home automation panels or Internet of Things (IoT) devices. You can design custom graphical user interfaces (GUIs) to control lighting, temperature, security cameras, and other smart home components directly from the display. Python and other programming languages supported by Raspberry Pi make it straightforward to develop these applications.

Build Educational Tools and Interactive Learning Devices

Educators and students can leverage the touchscreen display to create interactive learning tools. The direct touch interface enhances engagement with educational software, programming environments, and interactive tutorials. The display's compatibility with popular Raspberry Pi educational programs makes it a valuable resource for classrooms and self-learning.

Design Embedded Systems and Control Panels

The Raspberry Pi 7 touchscreen display element14 is ideal for embedded systems such as kiosks, control panels, and information dashboards. Its compact size and integrated touch functionality allow developers to build sleek, all-in-one devices with user-friendly interfaces for industrial, commercial, or personal use.

Create Retro Gaming Consoles with Touch Controls

Retro gaming enthusiasts can use the touchscreen to build custom gaming consoles featuring touch-enabled menus and controls. The display's responsiveness and multi-touch support allow for creative input methods beyond traditional controllers.

Technical Overview of the Raspberry Pi 7 Touchscreen Display Element14

Hardware Specifications

- Display size: 7 inches diagonal

- Resolution: 800 x 480 pixels

- Active display area: Approximately 155mm x 86mm

- Touch technology: Capacitive multi-touch supporting up to 10 fingers

- Color depth: 24-bit true color

- Viewing angle: Wide, suitable for multi-user viewing

- Interface: DSI ribbon cable for data connection

- Power supply: 5V via Raspberry Pi GPIO pins

- Included components: Touchscreen display, adapter board, DSI ribbon cable, stand-offs, and screws

Software and Driver Support

The Raspberry Pi OS includes native drivers for the 7-inch touchscreen display element14, ensuring plug-and-play functionality. The drivers support multi-touch gestures and an on-screen keyboard, enabling full operation without external peripherals. The display requires the latest Raspberry Pi OS version for optimal performance and compatibility.

Raspberry Pi Projects Display

Practical Benefits of Using the Raspberry Pi 7 Touchscreen Display Element14

Reduced Peripheral Dependence

With integrated touch input and an on-screen keyboard, the need for external keyboards and mice is eliminated, simplifying project setup and improving portability.

Improved Project Aesthetics and Usability

The display transforms the Raspberry Pi from a bare board into a polished, user-friendly device suitable for demonstrations, consumer products, or educational tools.

Customizable and Expandable

Developers can create custom GUIs and interactive applications using Python and other supported languages, tailoring the touchscreen experience to specific project needs.

Energy Efficiency

Low power consumption makes the display suitable for battery-powered or mobile projects, extending operational time and reducing energy costs.

How to Set Up the Raspberry Pi 7 Touchscreen Display Element14

Step 1: Prepare Your Raspberry Pi

Ensure your Raspberry Pi is running the latest Raspberry Pi OS. Update system packages to avoid compatibility issues.

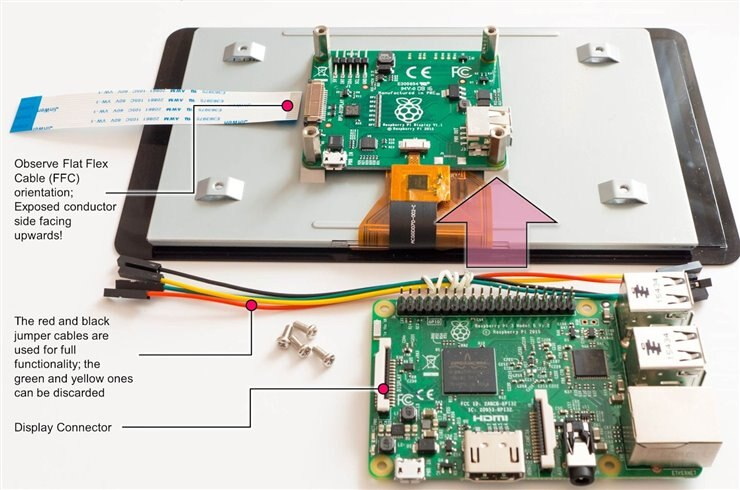

Step 2: Connect the Hardware

Attach the DSI ribbon cable from the touchscreen display to the Raspberry Pi's DSI port. Connect the power from the Raspberry Pi's GPIO pins to the adapter board on the display. Secure the display and Raspberry Pi using the provided stand-offs and screws.

Step 3: Configure Software

Boot the Raspberry Pi. The OS should detect the touchscreen automatically. Enable the on-screen keyboard for keyboard-less operation. Calibrate the touchscreen if necessary (most units come pre-calibrated).

Step 4: Develop Touch-Enabled Applications

Use Python or other supported programming languages to create custom applications that leverage the touchscreen's capabilities.

Conclusion

The Raspberry Pi 7 touchscreen display element14 is a transformative accessory that elevates the Raspberry Pi platform by adding a vibrant, responsive, and easy-to-use touch interface. Its seamless hardware integration, robust software support, and versatile applications make it suitable for a wide variety of projects, from portable tablets and IoT devices to educational tools and embedded systems. The display's low power consumption and compact form factor further enhance its appeal for mobile and battery-powered projects. Whether you are a hobbyist, educator, or professional developer, the Raspberry Pi 7 touchscreen display element14 offers a powerful tool to create interactive, user-friendly, and visually appealing Raspberry Pi projects.

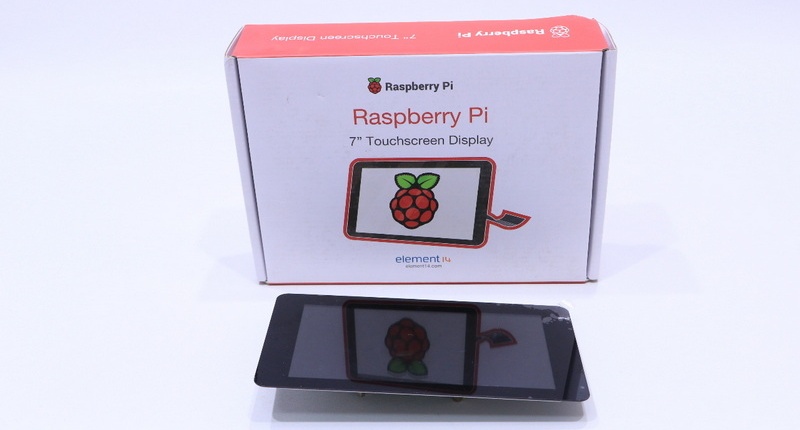

new raspberry pi 7 touchscreen display element

FAQ

1. What Raspberry Pi models are compatible with the Raspberry Pi 7 touchscreen display element14?

The display is compatible with Raspberry Pi models 2, 3, 4, and 5. It is not compatible with Raspberry Pi Zero, Zero 2 W, or Pi 400 due to the lack of a DSI port on those models.

2. Does the 7-inch touchscreen support multi-touch gestures?

Yes, the touchscreen supports true capacitive multi-touch with up to 10 simultaneous touch points, allowing gestures such as pinch, zoom, and swipe.

3. How is the touchscreen powered?

The touchscreen display is powered through the Raspberry Pi's GPIO pins, requiring no separate power supply. The included adapter board manages power distribution efficiently.

4. Is additional software required to use the touchscreen?

No additional software is needed if you use the latest Raspberry Pi OS, which includes native drivers and an on-screen keyboard for full touchscreen functionality.

5. Can I use the touchscreen for portable or battery-powered projects?

Yes, the display is energy efficient, consuming approximately 350-390mA at 5V, making it suitable for portable and battery-powered applications with appropriate power management.
