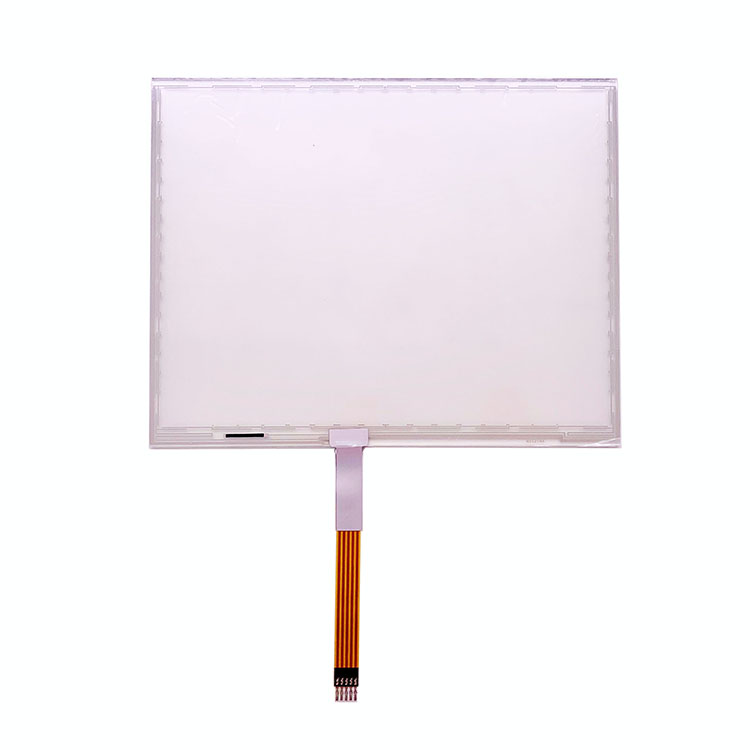

12.1 Resistive Touch Screen

Resistive touch screen Size: 12.1 inch
Working voltage: DC5V 1mA
Insulation resistance: ≥20MΩ/25V (DC)
Linearity: ≤2.5%
Response time: <10ms
Light transmittance: ≥76%
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXF-12003-02R

  • Reshine Display

12.1-inch 5 wire resistive touch screen Operation Principle:

A 5 wires resistive touch screen is a type of touchscreen technology that uses five main components to detect touch input.

It operates on the principle of changes in electrical resistance when pressure is applied to the screen.

The use of the additional X-axis layer in a 5-wire resistive touch screen helps to overcome some of the limitations of the 4-wire version.

It improves accuracy, durability, and reduces the occurrence of drift or false touches.

Product Spec:

The 12.1-inch four-wire resistive touch screen structure is film+glass.

Outline Dimensions: 265mmX208.99mm, viewing area: 245.98mmX184.48mm.

Display error is less than &plusmn;1%, 100000 touch points per square inch, FPC flexible cable length is 135.9mm.

12.1'' 5 wire resistive touch screen Advantage:

 ● Increased Durability: Can withstand heavy usage without affecting performance.

 ● Improved Accuracy: Provides more precise and reliable touch input detection.

 ● Reduced Drift: Minimizes the occurrence of inaccurate or unintentional touch input.

 ● Wide Touch Sensitivity Range: Can detect input from various sources like fingers, styluses, or gloves.

 ● Cost-Effective: Offers improved performance at a more affordable price compared to other touch screen technologies.

12.1'' 5 wire resistive touch screen Application:

●  Retail server

●  Query machine

●  Office automation

●  Medical equipment

●  Sales terminal POS

●  Voting, ticket sales and lottery sales

●  Production control panel for automatic workshops/equipment

12.1'' 5 wire resistive touch screen Quality Assurance:

The raw materials of Reshine Display's 5wire resistive touch screen are all well-known brands in China, and are protected by FDS press-fits with different manufacturers' protective films.

The result is a longer use of Reshine Display's 5wire resistive touch screen life. 5wire resistive touch screen is highly sealed to IP65 standards, and each touch screen is tested for 3H pencil hardness by ASTM D3363. Already passed REACH, ROHS, ISO9001 etc certification.


Company Strength:

Reshine Display founded in 2007, factory area of 10,000 square meters.

We use international advanced production equipment and has a 10,000-class (local hundred-level) production workshop.

We can provide resistive touch screen from 2.4inch to 21.5inch, capacitive touch screen from 2.4inch to 55inch, and TFT LCD screen.

Also provide touch screen with TFT LCD by air/frame and optical bonding.

Hot tags:12.1 resistive touch screen, 5-wire touch screen, 5 wire touch screen, touch screen lcd display module, 12.1 inch 5 wire resistive touch screen, portable touch screen monitor, tft monitor, display arduino touch, small lcd display module, 12.1 5 wire resistive touch screen, china, customized, suppliers, factory, manufacturers

Resistive touch screen Size: 12.1 inch

Working voltage: DC5V 1mA

Insulation resistance: ≥20MΩ/25V (DC)

Linearity: ≤2.5%

Response time: <10ms

Light transmittance: ≥76%

X:200-900Ω Y:200-900Ω

Surface treatment: Matte anti-Newton ring.

Operating pressure: 50-150g

Operating temperature: -20℃~+70℃≤90%RH

Storage temperature: -30℃~+80℃≤90%RH

Surface hardness: ≥3H

Pencil dotting life: ≥35,000,000 times

Resistive touch screen application: industrial control, military field, commercial and super integrated equipment, security (smart home),

medical equipment, automation equipment, etc.
