Replacing a laptop screen can be a practical solution when your current display is damaged or when you desire an upgrade, such as moving to a touchscreen or a higher-quality panel. One common question among laptop users is whether they can replace their existing screen with a 15.6-inch FHD LED UWVA touchscreen display assembly. This article explores the feasibility, compatibility considerations, installation process, and benefits of upgrading to a 15.6-inch FHD LED UWVA touchscreen display assembly, along with answers to frequently asked questions.

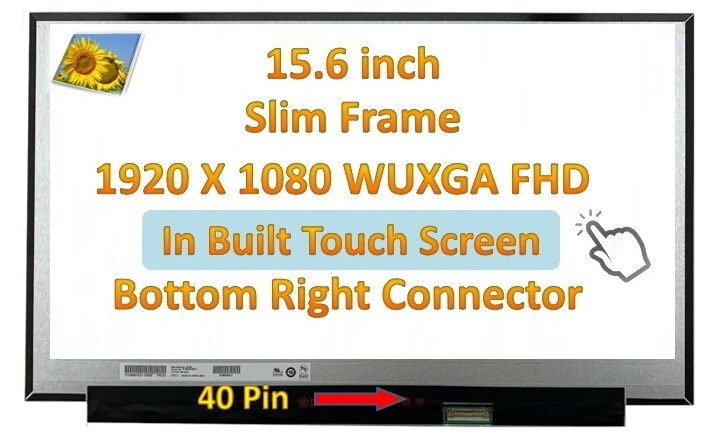

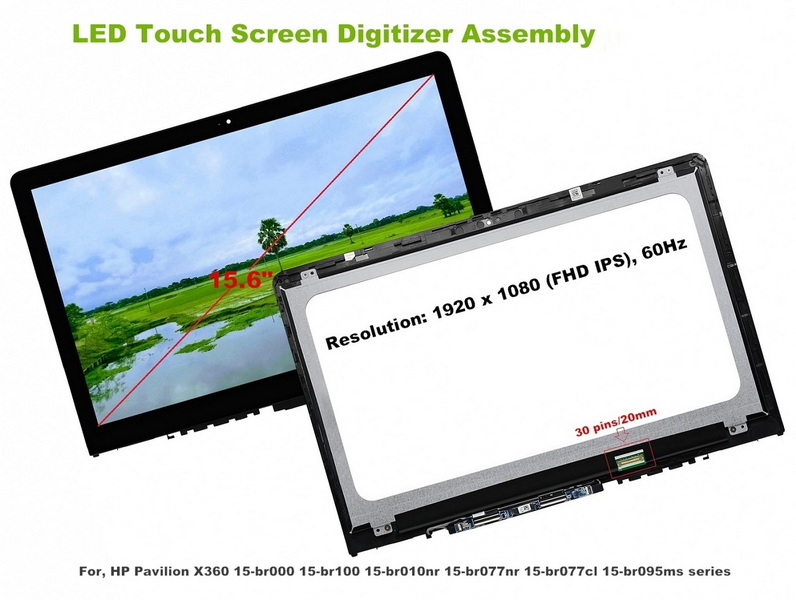

Before diving into the replacement process, it is important to understand what a 15.6-inch FHD LED UWVA touchscreen display assembly entails.
- Size and Resolution: The screen measures 15.6 inches diagonally and offers Full HD resolution of 1920 x 1080 pixels, providing crisp and clear visuals.
- Display Technology: The display uses LED backlighting combined with UWVA (Ultra Wide Viewing Angle) technology, which is a type of IPS panel offering wide viewing angles of 85 degrees in all directions, superior color accuracy, and consistent brightness.
- Touchscreen Capability: The touchscreen functionality allows direct interaction with the display using fingers or stylus, enhancing usability for tasks like drawing, note-taking, and navigation.
- Connector Type: Most 15.6-inch FHD UWVA touchscreen displays use an eDP (Embedded DisplayPort) connector, typically with 30 pins located at the bottom right of the screen.
- Compatibility: These assemblies are often OEM compatible with specific laptop models, especially those from brands like HP, Dell, Lenovo, and others, but exact compatibility depends on the laptop's specifications and hardware support.
Replacing a laptop screen with a 15.6-inch FHD LED UWVA touchscreen display assembly is possible but requires careful verification of compatibility:
- Physical Size and Mounting: The new screen must match the original screen's physical dimensions (15.6 inches diagonal) and mounting points to fit correctly inside the laptop casing.
- Resolution and Aspect Ratio: The replacement should have the same resolution (1920 x 1080) and aspect ratio to avoid display distortion or scaling issues.
- Connector Type and Position: The eDP connector type and pin count must match the original screen's connector. The connector's location (usually bottom right) is also important for proper cable routing.
- Touchscreen Support on Motherboard: Not all laptops support touchscreen functionality at the hardware level. Your laptop's motherboard and firmware must support touch input; otherwise, the touchscreen feature will not work even if the screen is replaced.
- Driver and Software Support: The operating system and drivers must support the touchscreen hardware for it to function correctly.
If your laptop originally came with a non-touchscreen display, upgrading to a 15.6-inch FHD LED UWVA touchscreen display assembly might require additional hardware or firmware support. Some manufacturers design their laptops to accommodate both touchscreen and non-touchscreen variants with the same connector and mounting, making the upgrade easier. However, in many cases, the touchscreen digitizer controller and cables must also be present or added.
OEM (Original Equipment Manufacturer) screens like the HP L98324-001 or M45482-001 are guaranteed to be compatible with specific laptop models and come with quality assurance. Generic or third-party screens might fit physically but could lack full functionality or have lower quality. It is advisable to purchase from reputable suppliers and verify compatibility using your laptop's model number and serial number.
Replacing a laptop screen is a delicate process but can be done at home with the right tools and precautions. Here is a step-by-step guide:
- Power Down and Unplug: Shut down your laptop and disconnect all power sources.
- Remove the Battery: If your laptop has a removable battery, take it out to avoid electrical damage.
- Gather Tools: You will need small screwdrivers (Phillips and flathead), plastic pry tools or picks, tweezers, and possibly adhesive strips.
- Work on a Clean Surface: Use a static-free workspace to protect components.
- Carefully pry off the plastic bezel surrounding the screen using a plastic pry tool, starting at a corner and working your way around.
- Some laptops have screws hidden under rubber covers or stickers; remove these first.
- Unscrew the mounting brackets holding the screen in place (usually 4 screws).
- Gently tilt the screen forward to access the video cable on the back.
- Peel back any tape securing the video connector.
- Disconnect the video cable carefully without twisting or bending.
- For touchscreen models, also disconnect the touch digitizer cable if separate.
- Compare the new screen with the old one to confirm they match in size, resolution, connector type, and mounting points.
- Connect the video cable and the touchscreen digitizer cable if applicable, ensuring connectors are fully seated.
- Position the new screen in the frame and screw it into place.
- Apply new double-sided adhesive strips if the original screen used adhesive.
- Power on the laptop before reattaching the bezel to test the display and touchscreen functionality.
- Check for image clarity, touch responsiveness, and absence of dead pixels.
- Once confirmed working, snap the bezel back into place and replace any screws or rubber covers.
- Reinsert the battery and power on the laptop for final testing.
- Enhanced Visual Quality: UWVA panels provide better color accuracy and wider viewing angles compared to standard SVA or TN panels.
- Touchscreen Functionality: Adds interactivity and convenience for tasks like drawing, note-taking, and intuitive navigation.
- Full HD Resolution: Offers crisp and detailed images suitable for multimedia, work, and gaming.
- OEM Compatibility: Ensures reliable performance and fitment.
- Cost-Effective Upgrade: DIY replacement can save money compared to professional repairs or buying a new laptop.
- Compatibility Issues: Not all laptops support touchscreen upgrades; verify before purchasing.
- Delicate Process: Screen replacement requires care to avoid damaging cables or connectors.
- Warranty Void: DIY repairs may void manufacturer warranty.
- Touchscreen Calibration: After installation, touchscreen may require calibration.
- Quality Variance: Non-OEM screens may have inferior quality or lack touch functionality.
Replacing your laptop screen with a 15.6-inch FHD LED UWVA touchscreen display assembly is feasible and can significantly enhance your laptop's display quality and functionality. However, success depends on verifying compatibility with your laptop's hardware, ensuring the correct connector type, and confirming that your laptop supports touchscreen input. With proper tools and careful handling, you can perform the replacement yourself, gaining a crisp Full HD display with wide viewing angles and responsive touch capabilities. Always source your replacement screen from reputable suppliers and follow detailed guides to avoid common pitfalls.
Yes, but only if your laptop's motherboard and firmware support touchscreen functionality. You also need the necessary digitizer cables and drivers. Otherwise, the touchscreen feature will not work.
Check your laptop's model number and original screen specifications. Verify the connector type (usually eDP 30-pin), resolution (1920x1080), and physical dimensions. Consult your laptop's service manual or contact the manufacturer.
You typically need small Phillips and flathead screwdrivers, plastic pry tools or picks, tweezers, adhesive strips, and optionally an anti-static wrist strap.
Generic screens may fit physically but can have issues with touch functionality, color accuracy, or longevity. OEM or high-quality compatible screens are recommended for best results.
Power on the laptop before reassembling the bezel. Check for clear image display, absence of dead pixels, and verify that the touchscreen responds accurately to touch input.
