Introduction to Connecting Raspberry Pi Touchscreen Display

Connecting a touchscreen display to a Raspberry Pi is a straightforward process that enhances the functionality of your project by providing an interactive interface. The Raspberry Pi Touch Display 2, for instance, is a popular choice due to its compatibility with various Raspberry Pi models and its support for multi-touch gestures. In this article, we will guide you through the steps to connect a Raspberry Pi touchscreen display, focusing on the Touch Display 2, and address common questions related to the setup process.

The Touch Display 2 is designed to work seamlessly with Raspberry Pi models from the 1B+ onwards, excluding the Raspberry Pi Zero and Zero 2 W due to their lack of a DSI connector. It offers a 7-inch diagonal display with a resolution of 1280×720 pixels and supports up to five points of simultaneous multi-touch. The display is powered directly by the Raspberry Pi, eliminating the need for a separate power supply.

Understanding the Components

To connect the Touch Display 2, you will need a Flat Flexible Cable (FFC) and a GPIO connector. The type of FFC required depends on your Raspberry Pi model. For the Raspberry Pi 5, a 22-way to 15-way FFC is used, while other models use a 15-way to 15-way FFC. The GPIO connector is used to provide power to the display.

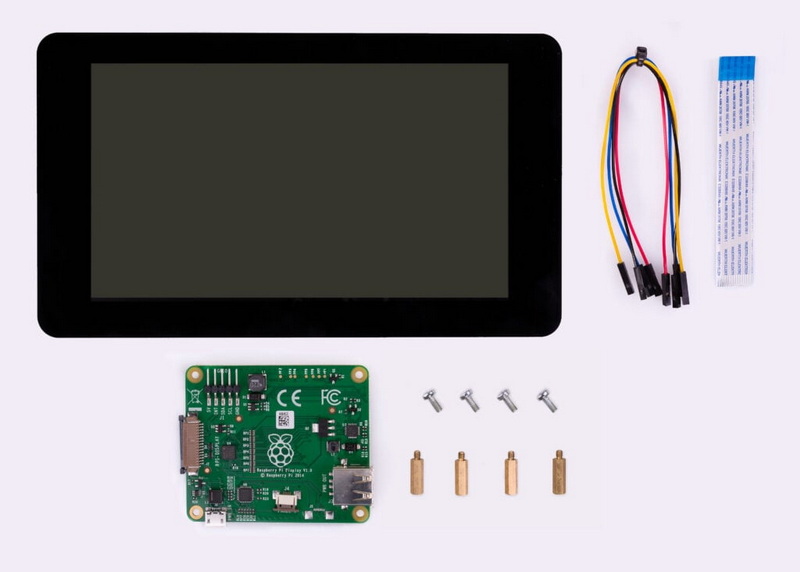

touch screen Display kit

Connecting the Touch Display 2

To connect the Touch Display 2 to your Raspberry Pi, follow these steps:

1. Disconnect Power: Ensure your Raspberry Pi is disconnected from any power source to prevent damage during the connection process.

2. Prepare the FFC Connector: Lift the retaining clips on either side of the FFC connector on the Touch Display 2. Insert one end of the FFC into the display's connector, ensuring the metal contacts face upwards. Secure the FFC by pushing the retaining clips back into place.

3. Connect to Raspberry Pi: Lift the retaining clips on the DSI connector of your Raspberry Pi, which is usually marked as "DISPLAY" or "DISP." Insert the other end of the FFC into this connector, with the metal contacts facing towards the Ethernet and USB-A ports. Secure the FFC by pushing the retaining clips back into place.

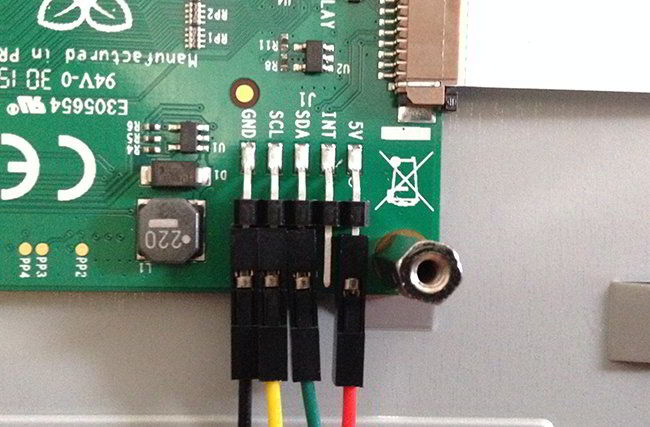

4. GPIO Connection: Connect the GPIO connector cable to the port marked "J1" on the Touch Display 2. The other end of the cable should be connected to pins 2, 4, and 6 of the Raspberry Pi's GPIO. The red cable (5V power) connects to pin 2, and the black cable (ground) connects to pin 6. If pin 6 is unavailable, any other GND pin can be used, and if pin 2 is occupied, any other 5V pin can be used.

5. Mounting the Raspberry Pi: Optionally, you can mount your Raspberry Pi to the back of the Touch Display 2 using M2.5 screws. Align the stand-offs of your Raspberry Pi with the mount points on the display and secure it by tightening the screws.

6. Power Up: Reconnect your Raspberry Pi to power. It may take up to one minute for the display to initialize and start showing output.

Common Issues and Solutions

1. Display Not Showing Output

If the display does not show any output after connecting, ensure that the FFC is fully inserted and correctly positioned. Also, verify that the power connections are secure and that the Raspberry Pi is properly powered. Sometimes, the display might not be recognized by the Raspberry Pi due to incorrect configuration settings. In such cases, you may need to adjust the display settings in the Raspberry Pi's configuration tool.

2. Incorrect FFC Connection

Using the wrong type of FFC for your Raspberry Pi model can lead to connection issues. Always use the correct FFC as specified for your model. For example, using a 15-way to 15-way FFC on a Raspberry Pi 5 will not work because it requires a 22-way to 15-way FFC.

3. GPIO Pin Misconnection

Incorrectly connecting the GPIO pins can prevent the display from functioning. Ensure that the red cable is connected to a 5V pin and the black cable to a GND pin. If you are unsure about the GPIO pin layout, refer to the Raspberry Pi documentation for clarification.

4. Display Calibration

After setting up the touchscreen, you may need to calibrate it for accurate touch input. Calibration ensures that the touch points align correctly with the display's coordinates. This is particularly important if you plan to use the touchscreen for applications that require precise touch input, such as interactive kiosks or educational tools.

5. Power Supply Issues

Since the display is powered by the Raspberry Pi, ensure that your Raspberry Pi's power supply is sufficient to handle the additional load. A higher capacity power adapter may be necessary if you notice any power-related issues, such as frequent shutdowns or dimming of the display.

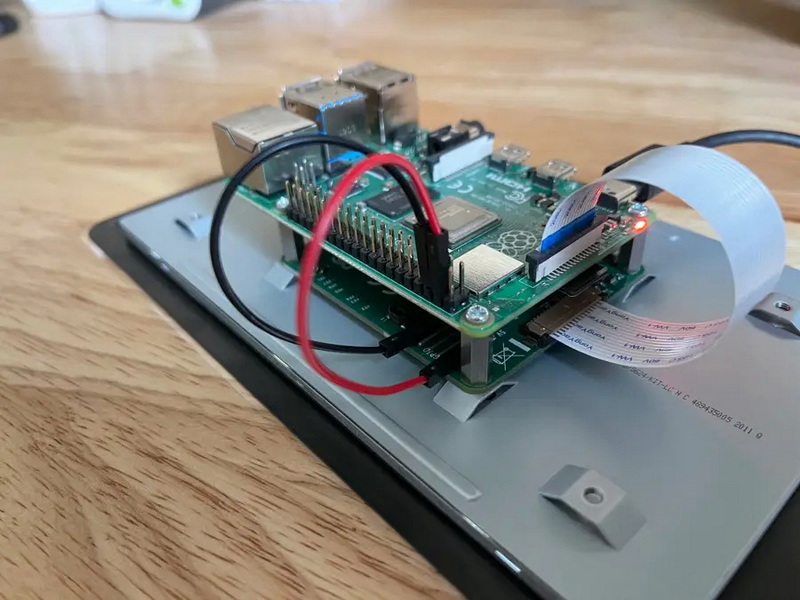

7 raspberry pi touch display jumper cables

Advanced Applications and Projects

The Raspberry Pi Touch Display 2 can be used in a variety of projects beyond basic computing tasks. For instance, it can be integrated into home automation systems to provide a user-friendly interface for controlling lights, thermostats, and security systems. It can also be used in educational settings to create interactive learning tools, such as digital whiteboards or interactive exhibits.

In addition, the touchscreen display can be used to build custom tablets or handheld devices for specific applications, such as inventory management in warehouses or point-of-sale systems in retail environments. The multi-touch capability allows for intuitive gestures, making it suitable for applications that require user interaction.

Moreover, the Touch Display 2 can be used in creative projects like digital picture frames, weather stations, or even as a control panel for robotics projects. Its compact size and portability make it an ideal choice for projects that require mobility and ease of use.

Tips for Optimizing Performance

To optimize the performance of your Raspberry Pi with the Touch Display 2, consider using a high-capacity microSD card to ensure smooth operation. Regularly updating your Raspberry Pi's operating system and software can also improve performance and stability.

Furthermore, managing power consumption is crucial, especially if you plan to use the display in battery-powered projects. Using power-saving modes or optimizing your application to consume less power can help extend battery life.

Conclusion

Connecting a Raspberry Pi touchscreen display, such as the Touch Display 2, is a straightforward process that requires careful attention to detail, especially when handling the FFC and GPIO connections. By following the steps outlined in this guide, you can successfully integrate a touchscreen into your Raspberry Pi projects, enhancing their interactivity and usability. Whether you're building a tablet, an entertainment system, or an information dashboard, the Touch Display 2 provides a versatile and user-friendly interface.
