Connecting an LCD screen to an Arduino is a fundamental skill for anyone interested in electronics and programming. This tutorial will guide you through the process of connecting a 16x2 LCD screen to an Arduino, using both parallel and I2C connections. By the end of this guide, you will be able to display text on your LCD, troubleshoot common issues, and explore additional applications.
Before we start wiring, let's review the components you'll need:
- Arduino Board: Any model (e.g., Uno, Nano)
- 16x2 LCD Display: A common character display
- Potentiometer (10kΩ): For contrast adjustment
- Breadboard and Jumper Wires: For connections
- Resistor (220Ω): For backlight control (if needed)
For a standard 16x2 LCD, you will need to connect several pins. Here's how to do it:
1. Connect Power
- LCD Pin 1 (VSS) to Arduino GND
- LCD Pin 2 (VDD) to Arduino 5V
2. Control Pins
- LCD Pin 3 (V0) to the middle pin of the potentiometer
- LCD Pin 4 (RS) to Arduino Digital Pin 12
- LCD Pin 5 (RW) to GND
- LCD Pin 6 (E) to Arduino Digital Pin 11
3. Data Pins
- LCD Pin 11 (DB4) to Digital Pin 5
- LCD Pin 12 (DB5) to Digital Pin 4
- LCD Pin 13 (DB6) to Digital Pin 3
- LCD Pin 14 (DB7) to Digital Pin 2
4. Backlight Pins
- If your display has backlight pins:
- Connect pin 15 (+) through a resistor to +5V
- Connect pin 16 (-) to GND

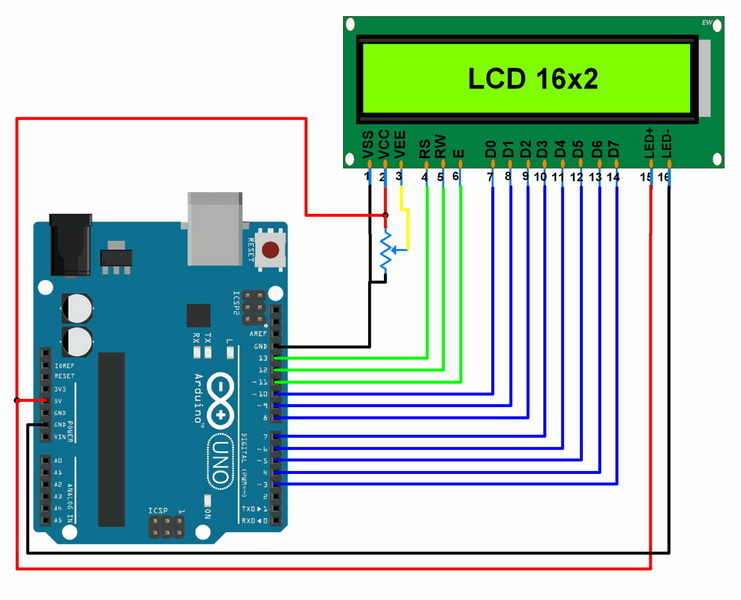

Here's a wiring diagram for better visualization:
Using an I2C adapter simplifies wiring significantly:
1. Connect Power
- I2C VCC to Arduino 5V
- I2C GND to GND
2. I2C Pins
- SDA to A4 on Arduino Uno/Nano
- SCL to A5 on Arduino Uno/Nano
Here's a simple diagram for I2C connections:
For both connection types, you need the appropriate libraries.
1. Open Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for “LiquidCrystal” and install it if not already included.
1. Similarly, search for “LiquidCrystal_I2C” in the Library Manager.
2. Install it.
After wiring and installing libraries, you can upload code that will allow your Arduino to communicate with the LCD.
You can write a simple program that initializes the display and prints "Hello World!" on it.
For I2C, you can use similar logic but with different initialization commands specific for I2C communication.
After uploading your code:
- If using a parallel connection: Adjust the potentiometer until you see clear characters.
- If using I2C: Ensure that your connections are secure and check if the backlight is on.
If your display does not work as expected:
- Ensure all connections are correct.
- Check if the potentiometer is functioning properly.
- Verify that you are using the correct I2C address.
- If using a parallel connection, ensure that you have initialized the library correctly.
Once you have successfully connected your LCD and displayed basic text, you can explore more advanced features such as scrolling text, displaying custom characters, or creating interactive menus.
You can program your Arduino to scroll text across the display, which is useful for displaying longer messages that exceed the width of the screen.
Many LCDs allow you to create custom characters by defining patterns in memory, which can be useful for displaying icons or special symbols relevant to your project.
By combining buttons with your LCD, you can create interactive menus that allow users to navigate through options or settings in your project.
As you delve deeper into working with Arduino and LCDs, consider exploring various projects that utilize these components effectively:
- Building a digital clock that displays time and date.
- Creating a temperature monitor that shows real-time readings from a sensor.
- Developing a simple game interface where players interact via buttons displayed on an LCD.
These projects not only enhance your understanding of how to connect and use an LCD with Arduino but also help in honing your programming skills while providing practical applications of what you've learned.
The combination of visual displays like LCDs with microcontrollers like Arduino opens up endless possibilities for creativity in electronics projects!
Connecting an LCD screen to an Arduino can greatly enhance your projects by providing visual feedback and data display capabilities. Whether you choose a standard parallel connection or an easier I2C setup depends on your project requirements and preferences.
Parallel connections require more pins and are more complex but offer direct control over each pin. I2C uses only two pins for communication but requires additional setup with libraries.
Use a potentiometer connected to pin V0 of the LCD; turning it will adjust the contrast.
Check your wiring connections; ensure power is supplied correctly and that you have initialized your library properly in your code.
Yes, you can use graphical displays or OLEDs; however, they may require different libraries and wiring configurations.
You can scroll text or switch between multiple messages by modifying your code logic in the loop function.
By following these steps and guidelines, you're well on your way to effectively using an LCD with your Arduino projects!
