Hooking up a Raspberry Pi 7 inch touchscreen display is an exciting project that can enhance your Raspberry Pi experience by providing a user-friendly interface. This setup allows you to interact with your Raspberry Pi without needing a keyboard or mouse, making it perfect for various applications, from home automation to educational projects. In this article, we will guide you through the process of setting up your Raspberry Pi 7 inch touchscreen display, addressing common questions and providing detailed explanations.
Before you start assembling the touchscreen display, ensure that your Raspberry Pi is updated with the latest operating system. This step is crucial for ensuring compatibility and smooth performance. Connect your Raspberry Pi to a monitor, keyboard, and mouse, and boot it into the Raspberry Pi OS. Updating your system ensures that you have the latest drivers and software necessary for optimal performance. After updating, safely shut down your Raspberry Pi and unplug all cables.

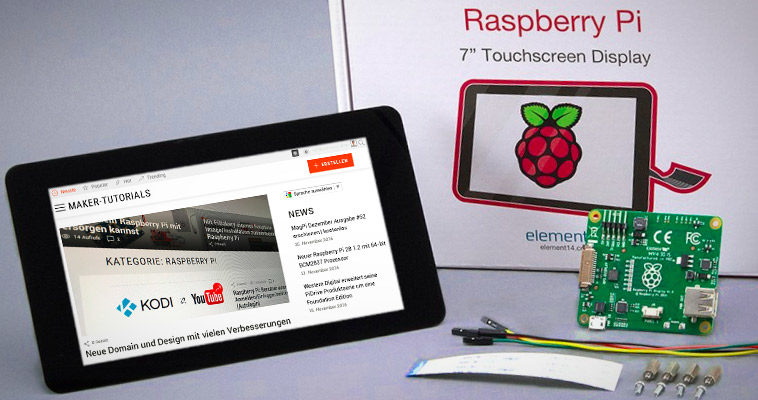

The Raspberry Pi 7 inch touchscreen display kit typically includes the display itself, an adapter board, a DSI ribbon cable, four jumper wires, and screws for mounting the Raspberry Pi. Here's how you can assemble it:
1. Connect the DSI Ribbon Cable: Start by connecting the DSI ribbon cable to the display. You will need to open the ribbon housing on the adapter board by sliding out the black brackets. Insert the ribbon cable with the blue side facing down. Ensure the cable is fully inserted and secure it by sliding the brackets back into place.
2. Mount the Raspberry Pi: Place the Raspberry Pi on the standoffs provided with the adapter board. Ensure that the display connector is on the same side as the ribbon cable. Use screws to secure the Raspberry Pi to the standoffs.
3. Connect Jumper Wires: The jumper wires need to be connected to the appropriate pins on the Raspberry Pi. Typically, you will connect:
- GND (Ground) to Pin 6
- 5V (Power) to Pin 2 or Pin 4
- SCL (Clock) to Pin 5
- SDA (Data) to Pin 3
These connections enable communication between the touchscreen and the Raspberry Pi.
Once your touchscreen display is set up, you can explore various advanced configurations and applications. For instance, you can customize the user interface to suit your needs, install additional software for specific tasks, or even integrate it with other devices for more complex projects.
Customizing the user interface can enhance the user experience by making it more intuitive and personalized. You can change themes, add shortcuts, or even create custom applications tailored to your specific needs. This level of customization makes the Raspberry Pi with a touchscreen display an excellent choice for projects that require a user-friendly interface.
Integrating your Raspberry Pi with other devices can expand its capabilities significantly. For example, you can connect sensors, cameras, or other peripherals to create a comprehensive system. This integration allows you to build complex projects such as home automation systems, surveillance systems, or interactive kiosks.
The Raspberry Pi with a touchscreen display is also an excellent tool for educational purposes. It provides a hands-on learning experience for students interested in programming, electronics, and computer science. Projects like building interactive displays or creating educational games can help students develop valuable skills in a fun and engaging way.
One of the most exciting applications of the Raspberry Pi with a touchscreen display is in home automation. You can use it to control lights, thermostats, or security systems with a user-friendly interface. This setup allows you to monitor and manage your home's systems remotely, enhancing convenience and efficiency.
Another application is in surveillance systems. By integrating cameras with your Raspberry Pi, you can create a monitoring system that allows you to view live feeds or record footage. The touchscreen display makes it easy to navigate through different camera views or adjust settings.
Troubleshooting and maintaining your Raspberry Pi with a touchscreen display is essential for ensuring it runs smoothly over time. Here are some tips:
- Regularly Update Software: Keep your Raspberry Pi OS and software up to date to ensure you have the latest fixes and features.
- Check Connections: Periodically inspect all connections to ensure they are secure and not damaged.
- Clean the Display: Regularly clean the touchscreen display to maintain its responsiveness and clarity.
For those looking to push their projects further, consider using the Raspberry Pi's GPIO pins to connect external devices like sensors or actuators. This can enable more complex automation tasks or interactive installations. Additionally, experimenting with different operating systems or software frameworks can provide new functionalities and customization options.
The GPIO pins on the Raspberry Pi offer a versatile way to connect external devices. By using these pins, you can integrate sensors to monitor environmental conditions, control motors for robotics projects, or even connect LED lights for visual feedback. This level of integration allows you to build sophisticated systems that interact with the physical world.
While the Raspberry Pi OS is the most commonly used operating system, you can also experiment with other OS options like Ubuntu or Windows IoT. Each operating system offers unique features and compatibility with different software applications. For instance, Ubuntu might be preferred for projects requiring a full desktop environment, while Windows IoT is ideal for enterprise-level applications.
Setting up a Raspberry Pi 7 inch touchscreen display is a straightforward process that enhances the functionality of your Raspberry Pi by providing a user-friendly interface. By following the steps outlined in this guide and addressing common issues, you can create a powerful and interactive system for various projects. Whether you're a beginner or an experienced user, this setup offers endless possibilities for creativity and innovation.
To ensure a proper ribbon cable connection, make sure the cable is fully inserted into the connector on both the display and the Raspberry Pi. The contacts should face inward towards the Raspberry Pi on the Pi side and outward on the display side. If you encounter issues with the display, double-check this connection. Incorrectly connected ribbon cables are a common cause of display problems.
If your touchscreen display appears upside down, you need to adjust the screen rotation. This can be done by modifying the configuration settings of your Raspberry Pi. Adjusting the screen rotation ensures that your display is oriented correctly, making it easier to use.
To use your Raspberry Pi with a touchscreen, you might want to install a virtual keyboard. This allows you to input text directly on the touchscreen without needing a physical keyboard. Installing a virtual keyboard enhances the usability of your Raspberry Pi when used with a touchscreen display.
Common issues with touchscreen displays include incorrect ribbon cable connections, insufficient power supply, or incorrect jumper wire connections. Ensure all cables are securely connected and that your power supply is adequate. A stable power supply is crucial for preventing shutdowns or erratic behavior.
Yes, you can use other touchscreen displays with your Raspberry Pi, but compatibility may vary. Ensure that the display you choose supports the Raspberry Pi's DSI interface and that you have the necessary adapter boards and cables. Some displays may require additional configuration or software to work properly.
To further enhance your project, consider exploring additional features such as Wi-Fi connectivity for remote access or integrating it with voice assistants for voice control. These enhancements can make your Raspberry Pi with a touchscreen display even more versatile and user-friendly.
