The Adafruit PiTFT touchscreen display has become a popular accessory among Raspberry Pi enthusiasts who seek a compact, integrated touchscreen solution. But is it truly the best choice for your Raspberry Pi project? This comprehensive article explores the features, advantages, limitations, and use cases of the Adafruit PiTFT, comparing it with other display options to help you decide if it fits your needs.

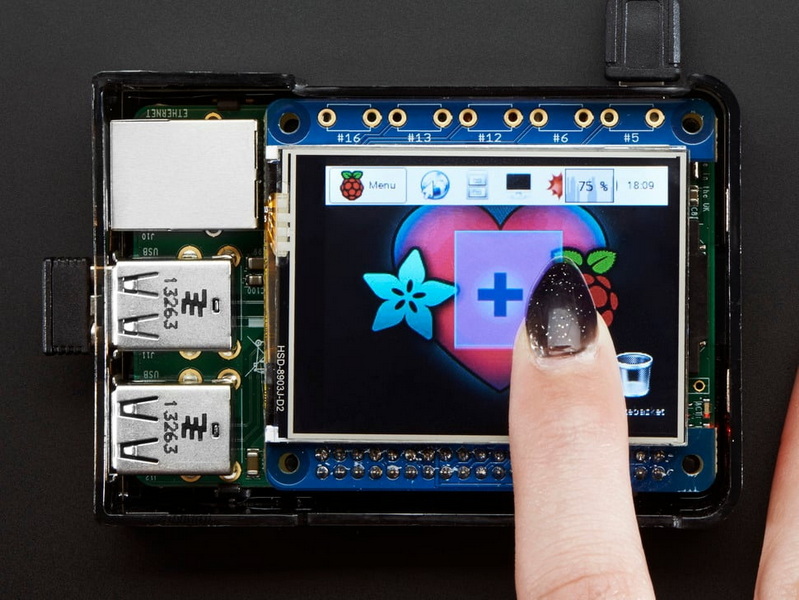

The Adafruit PiTFT is a small, 2.8-inch TFT touchscreen designed specifically to interface directly with Raspberry Pi models that have a 2x20 GPIO header. It offers a resolution of 320x240 pixels with 16-bit color depth, providing a colorful and crisp display for embedded applications. The PiTFT uses the high-speed SPI interface on the Raspberry Pi for communication, making installation straightforward without requiring additional cables or adapters[2][3].
Adafruit offers two main versions of the PiTFT 2.8-inch display: a resistive touchscreen and a capacitive touchscreen (PiTFT Plus). The resistive version requires a stylus, fingernail, or any object to register touch input, while the capacitive version supports finger touch input similar to modern smartphones and tablets. The capacitive touchscreen provides a more responsive and intuitive user experience, including multi-touch gestures, whereas the resistive screen is generally more affordable and can be activated by any object[3][7].

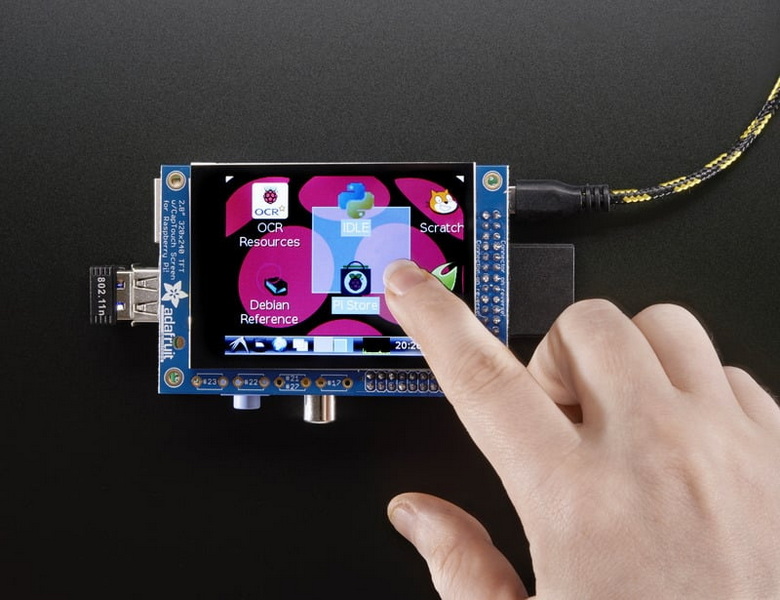

The PiTFT is designed to fit neatly on top of the Raspberry Pi models with a 2x20 GPIO header, including the Pi Zero, Pi 2, Pi 3, Pi 4, and Model A+ and B+. However, the original Pi 1 models with 2x13 headers are not compatible with the newer PiTFT Plus versions. Some older Pi models may experience slight PCB overhangs over USB ports, but newer versions have been redesigned to match the Raspberry Pi board outlines better and bring out all 40 GPIO pins for easier expansion[2][3][7].
Installation involves plugging the PiTFT directly onto the GPIO header and installing a custom Linux kernel package provided by Adafruit to enable touchscreen and display support. Adafruit offers helper scripts that automate this process, including touchscreen calibration and display configuration, making setup accessible even to users with moderate Linux experience[4][6].
One of the biggest strengths of the PiTFT is its compact form factor. The 2.8-inch screen size and direct GPIO connection make it ideal for portable or embedded projects where space is limited. Unlike HDMI displays, the PiTFT does not require extra cables or external power sources, resulting in a clean, all-in-one solution[1][3].
The PiTFT supports multiple modes of operation, including console access, graphical environments like X11, and custom graphical interfaces using libraries such as PyGame or SDL. This versatility allows users to create simple user interfaces, control panels, or display images and videos from the Raspberry Pi camera module. The inclusion of four tactile buttons wired to GPIO pins offers additional input options for creating basic user interfaces or power controls[2][3][7].
Despite its small size, the PiTFT provides crisp and easy-to-read text and decent color reproduction at 320x240 resolution. For terminal-based applications, monitoring, or simple graphical interfaces, the display quality is more than adequate. Its 16-bit color depth allows for vibrant visuals suitable for many embedded projects[1][3].
Adafruit has developed extensive tutorials, software packages, and community forums to support PiTFT users. The availability of detailed installation guides, calibration tools, and example projects lowers the barrier to entry and helps users get the most out of their PiTFT displays[4][6].
The 2.8-inch diagonal and 320x240 resolution limit the PiTFT's usability for applications requiring detailed visuals, high-resolution graphics, or extensive screen real estate. It is less suitable as a primary desktop display or for multimedia-heavy tasks such as web browsing or video editing. Larger displays, like the official 7-inch Raspberry Pi touchscreen with 800x480 resolution, offer a more comfortable user experience for such purposes[3].
The original PiTFT's resistive touchscreen requires a stylus or fingernail for input, which can be less convenient and less responsive than capacitive touchscreens. This may affect usability, especially for users accustomed to modern touchscreen devices. However, the resistive version can register input from any object, which may be advantageous in certain industrial or rugged environments[3].
The PiTFT is designed to work with Raspberry Pi models featuring a 2x20 GPIO header. It is incompatible with older Pi models that have a 2x13 header, such as the original Pi 1 Model A and B. Additionally, some users have reported challenges when using the PiTFT with the Raspberry Pi 400 due to its unique form factor and GPIO layout, requiring additional configuration steps[3].
The PiTFT requires a custom Linux kernel package provided by Adafruit for proper operation. Users must avoid updating the Raspberry Pi firmware or kernel using the standard rpi-update command, as this can break PiTFT support. While Adafruit provides helper scripts to facilitate installation and configuration, this dependency on a specific kernel version can complicate system updates and maintenance[4].
When deciding if the PiTFT is the best choice, it is useful to compare it with other popular Raspberry Pi display options.
| Feature | Adafruit PiTFT 2.8" | Official Raspberry Pi 7" Touchscreen | HDMI Monitors |
|---|---|---|---|
| Screen Size | 2.8 inches | 7 inches | Varies (typically 10"+) |
| Resolution | 320x240 pixels | 800x480 pixels | Varies (720p, 1080p, etc.) |
| Touchscreen Type | Resistive or Capacitive | Capacitive | Capacitive (if touchscreen) |
| Connection | GPIO (SPI, I2C) | DSI Ribbon Cable | HDMI |
| Power | Powered by Pi GPIO | Powered by Pi | Usually external power source |
| Installation Complexity | Moderate (kernel install) | Moderate (ribbon cable) | Simple (plug and play) |
| Portability | High | Moderate | Low |
| Use Case | Embedded, portable UI | General purpose touchscreen | Desktop, multimedia |
The PiTFT excels in portability and GPIO integration, making it ideal for embedded or custom projects where space and power constraints exist. The official 7-inch touchscreen offers a larger, higher-resolution display better suited for general desktop use. HDMI monitors provide the highest resolution and flexibility but require more space, cables, and power[3].
The PiTFT is best suited for projects that require a small, integrated touchscreen display with direct GPIO connection and low power consumption. Examples include:
- Portable Raspberry Pi devices or handheld consoles
- Embedded control panels or kiosks
- Custom user interfaces for IoT devices
- Raspberry Pi camera preview screens
- Terminal access or simple graphical interfaces in compact setups
For users needing a compact, all-in-one display solution with tactile buttons and touchscreen input, the PiTFT offers a compelling balance of features and ease of integration[1][3][7].
The Adafruit PiTFT touchscreen display is an excellent choice for Raspberry Pi enthusiasts seeking a compact, integrated touchscreen solution that connects directly to the GPIO header. Its small size, reasonable resolution, and available resistive or capacitive touch options make it versatile for embedded and portable projects. The inclusion of tactile buttons and strong community support further enhance its appeal.
However, the PiTFT's small screen size and lower resolution limit its suitability for general desktop use or multimedia-heavy applications. Users requiring larger displays or higher resolution should consider alternatives such as the official 7-inch Raspberry Pi touchscreen or HDMI monitors.
Ultimately, whether the Adafruit PiTFT is the best choice depends on your specific project requirements. For embedded applications, portable devices, or simple graphical interfaces, it is a top contender. For full desktop usability or high-resolution needs, other displays may be more appropriate.
The PiTFT is compatible with Raspberry Pi models that have a 2x20 GPIO header, including the Pi Zero, Pi 2, Pi 3, Pi 4, and Model A+ and B+. It is not compatible with older Pi models that have a 2x13 GPIO header, such as the original Pi 1 Model A and B[2][3].
The resistive PiTFT requires a stylus, fingernail, or any object to register touch input and is generally more affordable. The capacitive PiTFT Plus supports finger touch input with multi-touch gestures, offering a more modern and responsive experience similar to smartphones[3][7].
Installation involves plugging the PiTFT onto the GPIO header and running Adafruit's helper scripts to install a custom kernel and configure the display. While some Linux command-line experience is helpful, Adafruit provides detailed tutorials and automated scripts to simplify the process[4][6].
Due to its small 2.8-inch size and 320x240 resolution, the PiTFT is not ideal as a primary desktop display. It is better suited for console access, embedded interfaces, or simple graphical applications rather than general desktop computing[3].
The PiTFT's power consumption mainly depends on the backlight. With the backlight fully on, it draws approximately 100mA from the Raspberry Pi's power supply, which is modest and suitable for portable or embedded projects[2].
