Resistive touch screen technology has been a pivotal innovation in the realm of human-computer interaction. This technology allows users to engage with devices through touch, making it a fundamental component in various applications, from industrial equipment to consumer electronics. In this article, we will explore the intricacies of resistive touch screens, their operation, advantages and disadvantages, and their applications across different sectors.

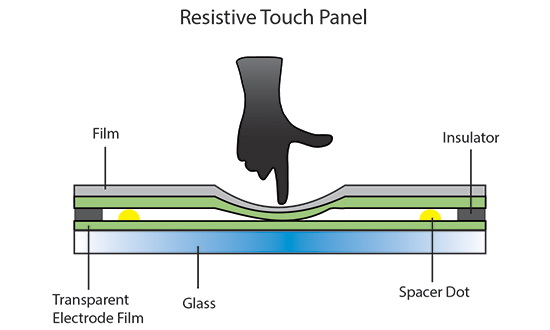

A resistive touchscreen is a type of display that detects touch through pressure applied to its surface. It consists of two flexible sheets coated with a resistive material, separated by a small air gap or microdots. When pressure is applied, these layers make contact, allowing the device to register the point of touch.

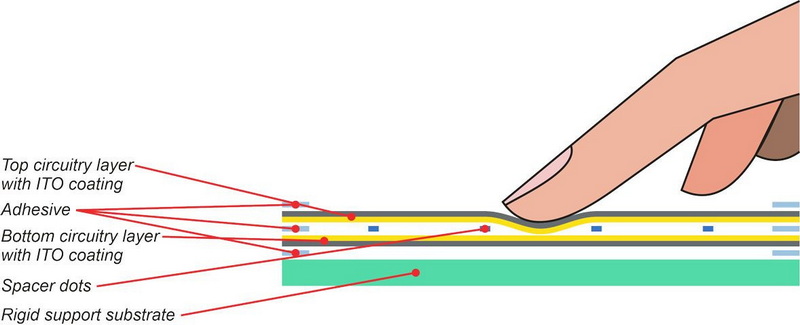

The operational principle of resistive touch screens involves two main conductive layers:
- Top Layer: This is typically made from a flexible plastic material (like PET) and is the layer that users interact with.
- Bottom Layer: This layer can be made from either rigid glass or another layer of plastic.
When the top layer is pressed down, it touches the bottom layer at specific coordinates. The screen uses a voltage gradient to determine the X and Y coordinates of the touch based on changes in electrical resistance caused by the pressure applied.
In more detail, during the operation of a four-wire touchscreen, a uniform, unidirectional voltage gradient is applied to the first sheet. When the two sheets are pressed together, the second sheet measures the voltage as distance along with the first sheet, providing the X coordinate. Once this contact coordinate has been acquired, the voltage gradient is applied to the second sheet to ascertain the Y coordinate. These operations occur within a few milliseconds, registering the exact touch location as contact is made, provided the screen has been properly calibrated for variations in resistivity.
Resistive touchscreens can have high resolution (4096 x 4096 or higher), providing accurate touch control. Because the touchscreen responds to pressure on its surface, contact can be made with a finger or any other pointing device.
Resistive touch screens offer several benefits that make them suitable for specific applications:
- Cost-Effective: They are generally less expensive to manufacture compared to capacitive touch screens, making them ideal for budget-sensitive projects.
- Versatile Input Options: Unlike capacitive screens that require conductive input (like a finger), resistive screens can be operated with various objects, including fingers, styluses, and even gloved hands.
- Durability Against Contaminants: They are more resistant to dust and moisture, making them suitable for environments where exposure to such elements is likely.
- High Resolution: Resistive touch screens can achieve high resolutions (up to 4096 x 4096), providing accurate touch control.
- Low Power Consumption: These screens typically consume less power than other types of displays due to their simpler construction and operation method.
Despite their advantages, resistive touch screens also come with notable drawbacks:
- Limited Multi-Touch Capability: Traditional resistive screens typically support only single-touch input, which limits their functionality in applications requiring multi-touch gestures.
- Lower Sensitivity: They require more pressure to register a touch compared to capacitive screens, which can lead to user fatigue in prolonged use.
- Vulnerability to Damage: The flexible layers can be prone to scratches and wear over time, especially in high-use environments.
- Reduced Transparency: Compared to capacitive screens, resistive screens often have lower light transmission rates due to their layered construction, which can affect visibility under certain lighting conditions.
Resistive touch screens are widely used across various industries due to their unique advantages:
- Industrial Equipment: Their durability and ability to work with gloves make them ideal for manufacturing environments where operators may need to interact with machinery while wearing protective gear.
- Medical Devices: In healthcare settings, resistive touch screens are used in devices where hygiene is crucial and where users may need to operate equipment while wearing gloves.
- Consumer Electronics: While less common than capacitive screens in smartphones and tablets, they are still used in some handheld devices and ATMs due to their cost-effectiveness and ease of use.
- Point-of-Sale Systems: Retail environments often utilize resistive screens for POS systems because they can withstand spills and dirt while providing reliable input options for cashiers using styluses or gloved hands.
- Kiosks and Information Displays: Many public information kiosks employ resistive technology because they can be designed for outdoor use without fear of damage from weather conditions.
To better understand where resistive touch screens stand in the market, it's essential to compare them with capacitive touch screens:
| Feature | Resistive Touch Screens | Capacitive Touch Screens |
|---|---|---|
| Cost | Lower | Higher |
| Input Sensitivity | Requires pressure | Sensitive to light touches |
| Multi-Touch Support | Limited (usually single-touch) | Supports multi-touch gestures |
| Durability | More resistant to dirt and moisture | Less durable; can function even if cracked |
| Ideal Environments | Industrial and medical applications | Consumer electronics like smartphones |
This table highlights key differences that can influence the choice between these two technologies based on specific needs and environments.
Resistive touchscreen technology has evolved significantly since its inception in the 1960s. Originally designed for simple applications like calculators and early computers, advancements have led to improved performance characteristics such as increased sensitivity and durability. Modern resistive touchscreen panels now utilize advanced materials like Indium Tin Oxide (ITO) coatings that enhance conductivity while maintaining transparency.
Furthermore, innovations in manufacturing processes have reduced costs while improving quality. Today's resistive touchscreens often feature anti-glare coatings and enhanced durability against scratches and environmental factors. This evolution has allowed them to remain relevant even as newer technologies emerge.
Looking ahead, resistive touchscreen technology continues to hold promise across various industries. With ongoing research into new materials such as graphene and flexible substrates, future iterations may offer even greater durability and responsiveness while maintaining low production costs.
Moreover, as industries increasingly seek solutions that combine affordability with functionality—especially in harsh environments—resistive technology is likely to see continued adoption alongside advancements in complementary technologies like capacitive systems.
Resistive touch screen technology remains relevant due to its unique capabilities and cost-effectiveness. While it may not match the advanced features of capacitive technology in certain areas such as multi-touch support and sensitivity, its robustness makes it indispensable in environments where durability and versatility are paramount. As technology evolves, resistive touchscreens continue to find their place in specialized applications across various industries.
While traditional resistive touchscreens primarily support single-touch input, some modern versions do allow for limited multi-touch functionality.
No, resistive touchscreens require more pressure to register a touch compared to capacitive screens, which respond more readily to light touches.
Yes, resistive touchscreens can be operated using a stylus or any other object that applies sufficient pressure.
The lifespan varies but high-quality resistive screens can endure over 200,000 touches before significant degradation occurs.
They are ideal for rugged environments such as industrial settings or medical facilities where users may need to operate devices while wearing gloves or in dirty conditions.
This comprehensive overview encapsulates everything you need to know about resistive touchscreen technology—its workings, benefits, limitations, applications across various sectors—and how it stands against other technologies like capacitive systems while also considering future trends that may shape its evolution further.
