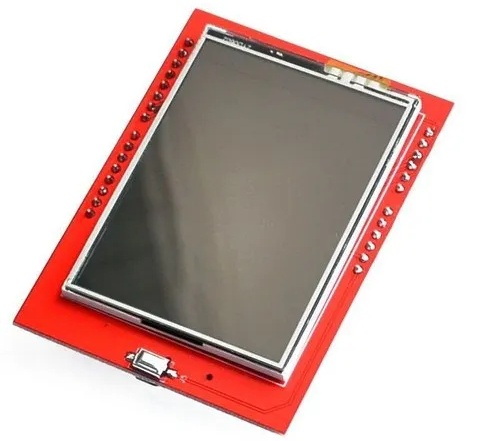

>> 2.8 inch TFT Touch Shield (Resistive)
>> 3.5 inch TFT LCD Touchscreen (Resistive or Capacitive)
>> 9 inch TFT Touchscreen Shield (Optional Capacitive Touch)
>> Nextion Touchscreen Displays
● How to Choose the Best Touchscreen Display for Arduino Projects
>> 1. Define Your Project Needs
>> 3. Evaluate Touchscreen Technology
>> 4. Check for Additional Features
>> 5. Budget
● Integrating a Touchscreen Display with Arduino: Step-by-Step
>> Step 2: Connect the Display
>> Step 4: Calibrate the Touchscreen
>> Step 5: Create the User Interface
● Troubleshooting Common Issues
>> Inaccurate Touch Coordinates
● Advanced Applications and Ideas
● Frequently Asked Questions (FAQ)
>> 1. What is the difference between resistive and capacitive touchscreen displays for Arduino?
>> 2. How do I calibrate a touchscreen display for Arduino?
>> 3. Can I use a large touchscreen display (such as 7" or 9") with Arduino?
>> 4. What are some common uses for a touchscreen display in Arduino projects?
>> 5. Which libraries are recommended for working with touchscreen displays for Arduino?

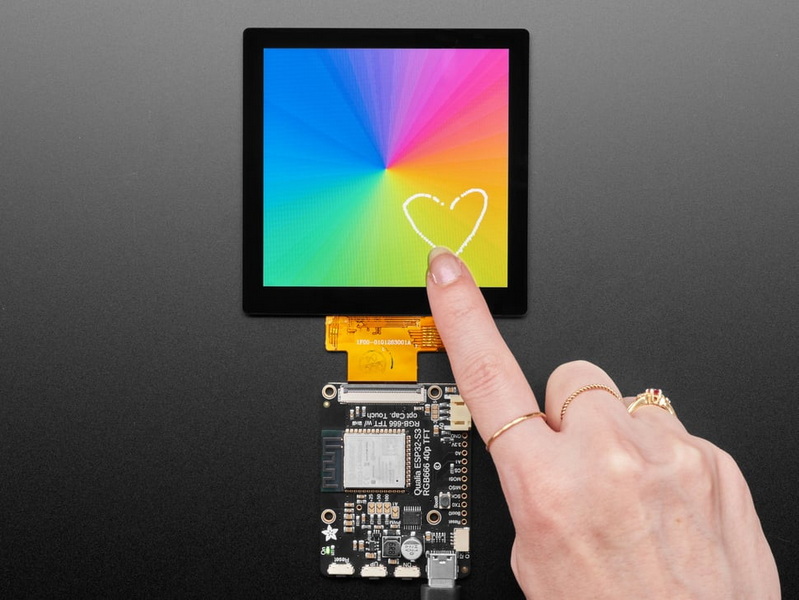

A touchscreen display for Arduino is more than just a visual output device; it is a dynamic interface that allows users to control, monitor, and interact with their projects in real time. As the Arduino ecosystem has matured, the range and quality of touchscreen displays available for hobbyists and professionals have expanded significantly.
Touchscreen displays for Arduino are now available in various sizes, resolutions, and technologies, catering to everything from simple button-based interfaces to complex graphical user interfaces (GUIs) with gesture support. The right touchscreen can elevate your project, making it more user-friendly, visually appealing, and functional.
Before selecting the best touchscreen display for Arduino, it is crucial to understand the underlying technologies that drive these interfaces. The two most common touchscreen technologies used in Arduino projects are resistive and capacitive.
Resistive touchscreens are the most prevalent in Arduino projects due to their affordability and ease of use. They consist of two flexible layers separated by a small gap. When pressure is applied (by a finger, stylus, or even a gloved hand), the layers make contact, registering the touch.
- Cost-effective
- Works with any pointing device (stylus, finger, glove)
- Simple to interface with Arduino
- Lower sensitivity and accuracy compared to capacitive screens
- No multi-touch support
- Slightly less durable due to the flexible layers
Capacitive touchscreens detect touch by measuring changes in the electrical field caused by a conductive object (like a human finger). These screens are commonly found in smartphones and tablets.
- Highly sensitive and accurate
- Supports multi-touch gestures
- More durable, as there are no flexible layers
- More expensive
- Requires direct skin contact (does not work with regular gloves or styluses unless they are special types)
- More complex to interface with Arduino due to additional hardware and software requirements
For most Arduino projects, resistive touchscreens remain the preferred choice due to their affordability, compatibility, and ease of integration. However, if your project demands high sensitivity or multi-touch features, a capacitive touchscreen may be worth the extra investment.
Selecting the best touchscreen display for Arduino involves evaluating several critical features:
The size and resolution of your touchscreen display for Arduino directly impact the user experience. Common sizes range from 2.4 inches to 4 inches diagonally, with resolutions from 320x240 pixels for smaller screens up to 480x320 pixels for larger ones.
- Smaller Displays (2.4"–2.8"): Ideal for compact projects, simple controls, or limited space.
- Medium Displays (3.2"–3.5"): Good balance between usability and size, suitable for most interfaces.
- Large Displays (4" and above): Best for complex GUIs, data visualization, or applications requiring more screen real estate.
A 3.5-inch display with 480x320 resolution is often considered the sweet spot for clarity, usability, and cost.
Most touchscreen displays for Arduino offer 16-bit color (65,536 colors), which is sufficient for vibrant and detailed graphics. Some higher-end models support 18-bit or even 24-bit color, but these are less common in the Arduino ecosystem.
Touchscreen displays for Arduino typically use one of two interface types:
- SPI (Serial Peripheral Interface): Fewer wires, slower data transfer, but easier to use with most Arduino boards.
- Parallel Interface: Faster data transfer, more wires, but may require larger Arduino boards (like Mega or Due) due to the increased pin count.
Choose an interface that matches your Arduino board's capabilities and your project's complexity.
The touchscreen controller is the chip that interprets touch inputs and communicates with the Arduino. Popular controllers include XPT2046 (resistive) and GT911 (capacitive). Ensure the display you choose is compatible with available Arduino libraries.
- microSD Card Slot: Useful for storing images, fonts, or configuration files.
- Backlight Control: Allows you to adjust display brightness programmatically.
- Shield vs. Module: Shields plug directly onto Arduino boards, while modules require wiring. Shields are easier for beginners, while modules offer more flexibility.
Several touchscreen display models have become popular in the Arduino community due to their reliability, support, and features.
- Resolution: 240x320 pixels
- Color Depth: 18-bit (262,000 colors)
- Interface: SPI for display, I2C for touchscreen
- Features: Built-in microSD slot, compatible with most Arduino boards, robust library support
This display is a favorite for compact projects and offers a good balance between size, performance, and cost.
- Resolution: 480x320 pixels
- Color Depth: 16-bit
- Interface: SPI or parallel
- Features: Large screen, available in both resistive and capacitive versions, suitable for advanced GUIs
The 3.5-inch TFT LCD touchscreen is widely used for its clarity and versatility, making it ideal for dashboards, games, and data visualization.
- Resolution: 800x480 pixels
- Color Depth: 16-bit
- Interface: Parallel (best with Arduino Mega or Due)
- Features: Huge screen, optional capacitive or resistive touch, built-in microSD
This display is perfect for ambitious projects requiring a large, detailed interface, though it requires a more powerful Arduino board.
- Sizes: 2.4" to 7"
- Resolution: Varies by size
- Features: Self-contained, onboard processor, easy GUI design with Nextion Editor, serial interface
Nextion displays are unique in that they handle much of the GUI processing onboard, reducing the load on the Arduino and simplifying development.
Selecting the best touchscreen display for Arduino depends on your project's requirements, your experience level, and your budget. Here's a step-by-step guide to help you decide:
- What will the touchscreen be used for? (Simple buttons, complex GUIs, data visualization, games, etc.)
- How much screen space do you need?
- Will the project be portable or stationary?
- Which Arduino board are you using? (Uno, Mega, Due, Nano, etc.)
- Does your board have enough pins for a parallel interface, or should you stick with SPI?
- Are there reliable libraries available for your chosen display and controller?
- For basic projects, resistive touchscreens are usually sufficient.
- For advanced projects requiring multi-touch or higher sensitivity, consider capacitive touchscreens.
- Do you need a microSD slot for storing images or data?
- Is backlight control important for your application?
- Will you benefit from a shield (plug-and-play) or do you prefer the flexibility of a module?
- Smaller, resistive touchscreen displays for Arduino are very affordable.
- Larger or capacitive displays are more expensive but offer enhanced capabilities.
Once you have selected your touchscreen display for Arduino, follow these general steps to integrate it into your project.
- Arduino board (e.g., Uno, Mega, Due)
- Touchscreen display (shield or module)
- Jumper wires (if using a module)
- Breadboard (optional)
- Power supply (if required)
- For shields, simply plug the shield onto your Arduino.
- For modules, connect the display pins to the appropriate Arduino pins according to the display's datasheet.
- Download and install the necessary libraries for your display and touchscreen controller (e.g., UTFT, URTouch, Adafruit_GFX, MCUFRIEND_kbv, TouchScreen.h).
- Ensure you have the correct library for your display's controller chip.
- Run the calibration sketch provided by the library to map touch coordinates to screen coordinates.
- Adjust calibration values in your code as needed for accurate touch detection.
- Design your GUI using the drawing functions provided by the library (e.g., draw buttons, labels, images).
- Implement touch event handling to respond to user input.
- Test your interface thoroughly.
- Refine button sizes, colors, and layout for optimal usability.
Using a touchscreen display for Arduino can sometimes present challenges. Here are some common issues and solutions:
- Check all connections and ensure the display is receiving power.
- Verify that the display is compatible with your Arduino board.
- Ensure the touchscreen controller is properly connected.
- Calibrate the touchscreen using the provided library tools.
- Check for library compatibility issues.
- Re-run the calibration process.
- Adjust the calibration values in your code.
- Use a display with a faster interface (parallel instead of SPI) if possible.
- Optimize your code to minimize unnecessary screen redraws.
- Use only one display and one touchscreen library at a time.
- Ensure your libraries are up to date and compatible with your Arduino IDE version.
A touchscreen display for Arduino opens up a world of creative possibilities. Here are some advanced applications and project ideas:
- Smart Home Control Panel: Monitor sensors, control lights, and manage appliances from a central touchscreen.
- Custom Game Console: Build interactive games with touch controls, graphics, and sound.
- Data Logger and Visualizer: Display real-time sensor data in graphs or charts.
- Industrial Machine Interface: Create custom control panels for machinery or automation systems.
- Educational Tools: Develop interactive learning modules or science experiments for classrooms.
Choosing the best touchscreen display for Arduino projects is a balance of technology, features, compatibility, and cost. For most hobbyists and professional makers, a 3.5-inch resistive TFT LCD touchscreen offers an excellent mix of size, resolution, and affordability. Capacitive screens are ideal for advanced projects requiring multi-touch or higher sensitivity, while Nextion displays simplify GUI development for complex interfaces.
Regardless of your choice, integrating a touchscreen display for Arduino can dramatically enhance your project's functionality and user experience. By understanding the technologies, evaluating key features, and following best practices for integration and troubleshooting, you can unlock the full potential of your Arduino creations.
Resistive touchscreens detect touch through pressure applied to two flexible layers, making them compatible with any pointing device, including gloved fingers and styluses. They are affordable and easy to use but lack multi-touch capability and are less sensitive. Capacitive touchscreens, on the other hand, detect touch by measuring changes in electrical fields and support multi-touch gestures with higher sensitivity, but they require direct skin contact and are more complex to integrate with Arduino.
Calibration involves mapping the raw touch coordinates to the display coordinates. Most touchscreen libraries provide a calibration example sketch that you run on your Arduino. Follow the on-screen prompts to touch specific points, then use the calibration values in your main program for accurate touch detection.
Yes, large touchscreen displays for Arduino are available, but they typically require more power and a more capable board (such as Arduino Mega or Due) due to increased data transfer and memory requirements. Some large displays also use parallel interfaces, which need more pins than smaller SPI-based screens.
Touchscreen displays for Arduino are commonly used for creating user interfaces (menus, buttons), data visualization (graphs, charts), games, home automation control panels, and custom dashboards for monitoring and controlling sensors and actuators.
Popular libraries include UTFT and URTouch for resistive touchscreens, Adafruit_GFX and Adafruit_TouchScreen for Adafruit displays, MCUFRIEND_kbv for certain TFT shields, and the Nextion Editor for Nextion displays. Always use the library recommended by your display manufacturer for best results.
